Aksesoris - Panel Hidrolik Punching Archives - PT. Bumi Teknik Utama https://www.bumi.info/product-category/punching-accessories/aksesoris-panel-hidrolik-punching-2/ Professional Industrial Equipments Mon, 18 Mar 2024 08:11:05 +0000 en-US hourly 1 https://wordpress.org/?v=6.7.5 https://www.bumi.info/wp-content/uploads/2021/01/cropped-B-LOGO-RED-32x32.png Aksesoris - Panel Hidrolik Punching Archives - PT. Bumi Teknik Utama https://www.bumi.info/product-category/punching-accessories/aksesoris-panel-hidrolik-punching-2/ 32 32 Panel Tristar Standard Punch & Die Set https://www.bumi.info/product/panel-tristar-standard-punch-die-set/ Mon, 19 Aug 2019 18:14:08 +0000 https://www.bumiteknik.com/?post_type=product&p=32862

[button title="Unduh Katalog (127 KB)" link="/wp-content/uploads/2024/03/B5-Panel-Tristar-Standard-Punch-Die-Set.pdf" target="_blank" align="" icon="icon-download" icon_position="left" color="#d6d6d6" font_color="#ed0b0b" size="1" full_width="" class="" download="Panel Tristar Standard Punch & Die Set" onclick=""]



Bagikan ke : [sharethis-inline-buttons]

The post Panel Tristar Standard Punch & Die Set appeared first on PT. Bumi Teknik Utama.

]]>

Keunggulan Produk

● Untuk meninju lubang ke baja ringan dan stainless steel, plastik dll.
● Dengan cepat tanpa usaha, bersih dan tanpa gerinda.
● Berlaku untuk mesin hidrolik Compact, Compact Combi, Hand dan Foot pump.
● Dengan 10 ukuran, 9 di antaranya dalam ukuran Pg.
● Lengkap dalam wadah penyimpanan plastik.

Split Hole Punch TriCut - PG sizes - Set
Item ContentSizeQty
Split Hole Punch TriCut P/D PG 16 - 63PG 9 – PG 489 Pcs
Split Hole Punch TriCut P/D PG 16 - 6330.5 mm1 Pc
Ball bearing screws9.5 x 50.0 mm2 Pcs
Ball bearing screw19.0 x 55.0 mm1 Pc
Ball bearing screw19.0 x 75.0 mm1 Pc
HSS-Cobalt pre drill10 mm1 Pc
Anti Friction Paste-1 Bottle
Item CodeItem NameMoQ
209.31.001Split Hole Punch TriCut - PG sizes - Set1 Set

Aksesoris Terkait

Panel Tristar Standard Punch & Die

Panel Square Punch & Die

Panel Split Hole Punch TriCut – ISO Sizes – Set

Panel Round Punch and Dies

Panel Rectangular Punch & Die

The post Panel Tristar Standard Punch & Die Set appeared first on PT. Bumi Teknik Utama.

]]> Panel Rectangular Punch & Die https://www.bumi.info/product/panel-rectangular-punch-die/ Mon, 19 Aug 2019 18:14:06 +0000 https://www.bumiteknik.com/?post_type=product&p=32861

[button title="Unduh Katalog (109 KB)" link="/wp-content/uploads/2019/05/Panel-Rectangular-Punch-Die.pdf" target="_blank" align="" icon="icon-download" icon_position="left" color="#d6d6d6" font_color="#ed0b0b" size="1" full_width="" class="" download="Panel Rectangular Punch & Die" onclick=""]

Bagikan ke : [sharethis-inline-buttons]

The post Panel Rectangular Punch & Die appeared first on PT. Bumi Teknik Utama.

]]>

Keunggulan Produk

● Untuk meninju lubang ke baja ringan dan stainless steel, plastik dll.
● Dengan cepat tanpa usaha, bersih dan tanpa gerinda.
● Dilengkapi dengan sekrup dalam wadah plastik.
● Berlaku untuk mesin hidrolik pompa Tangan dan Kaki.
● Dengan crosshair untuk penyelarasan presisi.

Item CodeItem Name
209.33.001Hole Punch FormCut - Rectangular - 17.0 x 19.0 mm
209.33.002Hole Punch FormCut - Rectangular - 21.8 x 25.8 mm
209.33.003Hole Punch FormCut - Rectangular - 22.0 x 30.0 mm
209.33.004Hole Punch FormCut - Rectangular - 22.0 x 42.0 mm
209.33.005Hole Punch FormCut - Rectangular - 25.0 x 50.0 mm
209.33.006Hole Punch FormCut - Rectangular - 45.0 x 92.0 mm
209.33.007Hole Punch FormCut - Rectangular - 46.0 x 92.0 mm
209.33.008Hole Punch FormCut - Rectangular - 68.0 x 138.0 mm

Aksesoris Terkait

Panel Tristar Standard Punch & Die Set

Panel Tristar Standard Punch & Die

Panel Square Punch & Die

Panel Split Hole Punch TriCut – ISO Sizes – Set

Panel Round Punch and Dies

The post Panel Rectangular Punch & Die appeared first on PT. Bumi Teknik Utama.

]]> Panel Square Punch & Die https://www.bumi.info/product/panel-square-punch-die/ Mon, 19 Aug 2019 18:14:05 +0000 https://www.bumiteknik.com/?post_type=product&p=32860

[button title="Unduh Katalog (108 KB)" link="/wp-content/uploads/2019/05/Panel-Square-Punch-Die.pdf" target="_blank" align="" icon="icon-download" icon_position="left" color="#d6d6d6" font_color="#ed0b0b" size="1" full_width="" class="" download="Panel Square Punch & Die " onclick=""]



Bagikan ke : [sharethis-inline-buttons]

The post Panel Square Punch & Die appeared first on PT. Bumi Teknik Utama.

]]>

Keunggulan Produk

● Untuk meninju lubang ke baja ringan dan stainless steel, plastik dll.
● Dengan cepat tanpa usaha, bersih dan tanpa gerinda.
● Dilengkapi dengan sekrup dalam wadah plastik.
● Berlaku untuk mesin hidrolik pompa Tangan dan Kaki.
● Dengan crosshair untuk penyelarasan presisi.

Item CodeItem Name
209.32.001Hole Punch FormCut - Square - 12.7 x 12.7 mm
209.32.002Hole Punch FormCut - Square - 15.8 x 15.8 mm
209.32.003Hole Punch FormCut - Square - 19.0 x 19.0 mm
209.32.004Hole Punch FormCut - Square - 22.2 x 22.2 mm
209.32.005Hole Punch FormCut - Square - 24.0 x 24.0 mm
209.32.006Hole Punch FormCut - Square - 25.4 x 25.4 mm
209.32.007Hole Punch FormCut - Square - 45.5 x 45.5 mm
209.32.008Hole Punch FormCut - Square - 46.0 x 46.0 mm
209.32.009Hole Punch FormCut - Square - 50.8 x 50.8 mm
209.32.010Hole Punch FormCut - Square - 68.0 x 68.0 mm
209.32.011Hole Punch FormCut - Square - 92.0 x 92.0 mm
209.32.012Hole Punch FormCut - Square - 125.0 x 125.0 mm
209.32.013Hole Punch FormCut - Square - 138.0 x 138.0 mm

Aksesoris Terkait

Panel Tristar Standard Punch & Die Set

Panel Tristar Standard Punch & Die

Panel Split Hole Punch TriCut – ISO Sizes – Set

Panel Round Punch and Dies

Panel Rectangular Punch & Die

The post Panel Square Punch & Die appeared first on PT. Bumi Teknik Utama.

]]> Panel Split Hole Punch TriCut – ISO Sizes – Set https://www.bumi.info/product/panel-split-hole-punch-tricut-iso-sizes-set/ Mon, 19 Aug 2019 18:14:02 +0000 https://www.bumiteknik.com/?post_type=product&p=32859

Share to : [sharethis-inline-buttons]

The post Panel Split Hole Punch TriCut – ISO Sizes – Set appeared first on PT. Bumi Teknik Utama.

]]>

Keunggulan Produk

● Untuk membuat lubang ke baja ringan dan stainless steel, plastik dll.
● Dengan cepat tanpa usaha, bersih dan tanpa gerinda.
● Berlaku untuk mesin hidrolik Compact, Compact Combi, Hand dan Foot pump.
● Dengan 7 ukuran sesuai, 9 di antaranya dalam ukuran Pg.
● Dengan 7 ukuran sesuai dengan ISO 16-20-25-32-40-50-63.
● Lengkap dalam wadah penyimpanan plastik.

Split Hole Punch TriCut - ISO Sizes - Set
Item ContentSizeQty
Split Hole Punch TriCut P/D ISO 16 - 63-7 Pcs
Ball bearing screws9.5 x 50.0 mm2 Pcs
Ball bearing screw19.0 x 55.0 mm1 Pc
Ball bearing screw19.0 x 75.0 mm1 Pc
HSS-Cobalt pre drilldiameter 10 mm1 Pc
Anti Friction Paste-1 Bottle
Item CodeItem Name
209.31.002Split Hole Punch TriCut - ISO Sizes - Set

Aksesoris Terkait

Panel Tristar Standard Punch & Die Set

Panel Tristar Standard Punch & Die

Panel Square Punch & Die

Panel Round Punch and Dies

Panel Rectangular Punch & Die

The post Panel Split Hole Punch TriCut – ISO Sizes – Set appeared first on PT. Bumi Teknik Utama.

]]> Panel Tristar Standard Punch & Die https://www.bumi.info/product/panel-tristar-standard-punch-die/ Mon, 19 Aug 2019 18:13:57 +0000 https://www.bumiteknik.com/?post_type=product&p=32858

[button title="Unduh Katalog (199 KB)" link="/wp-content/uploads/2024/03/B4-Panel-Tristar-Standard-Punch-Die.pdf" target="_blank" align="" icon="icon-download" icon_position="left" color="#d6d6d6" font_color="#ed0b0b" size="1" full_width="" class="" download="Panel Tristar Standard Punch & Die" onclick=""]



Bagikan ke : [sharethis-inline-buttons]

The post Panel Tristar Standard Punch & Die appeared first on PT. Bumi Teknik Utama.

]]>

Keunggulan Produk

● Sistem Punch & Die dengan Punch Splitter untuk Steel St. 37.
● Dengan cepat tanpa usaha, bersih dan tanpa gerinda.
● Mampu untuk semak kabel.
● Berlaku untuk mesin hidrolik Compact, Compact Combi, Hand dan Foot pump.

Lihat di bawah untuk Diameter

Item CodeItem NamePGInchMConduit
209.30.001Split hole punch
TriCut Ø 12.5 mm		PG 71/2"M 12
209.30.002Split hole punch
TriCut Ø 15.2 mm		PG 9
209.30.003Split hole punch
TriCut Ø 16.2 mm		M 16
209.30.004Split hole punch
TriCut Ø 18.6 mm		PG 11
Split hole punch
TriCut Ø 19.0 mm		3/4"
209.30.005Split hole punch
TriCut Ø 20.4 mm		M 20PG 13
209.30.006Split hole punch
TriCut Ø 22.5 mm		PG 167/8"1/2"
209.30.007Split hole punch
TriCut Ø 25.4 mm		1"M 25
209.30.008Split hole punch
TriCut Ø 28.3 mm		PG 213/4"
209.30.009Split hole punch
TriCut Ø 28.3 mm		PG 213/4"
209.30.010Split hole punch
TriCut Ø 30.5 mm		1-7/32"
Item CodeItem NamePGInchMConduit
Split hole punch
TriCut Ø 31.7 mm		1-1/4"
209.30.011Split hole punch
TriCut Ø 32.5 mm		M 32
209.30.012Split hole punch
TriCut Ø 34.6 mm		1"
209.30.013Split hole punch
TriCut Ø 37.0 mm		PG 29
209.30.014Split hole punch
TriCut Ø 40.5 mm		M 40
209.30.015Split hole punch
TriCut Ø 43.2 mm		1-11/16"1-1/4"
209.30.016Split hole punch
TriCut Ø 47.0 mm		PG 36
209.30.017Split hole punch
TriCut Ø 49.6 mm		1-5/16"1-1/2"
209.30.018Split hole punch
TriCut Ø 50.5 mm		M 50
209.30.019Split hole punch
TriCut Ø 54.0 mm		PG 422-1/8"
209.30.020Split hole punch
TriCut Ø 60.0 mm		PG 48
209.30.021Split hole punch
TriCut Ø 61.5 mm		2-3/8"2"
209.30.022Split hole punch
TriCut Ø 63.5.mm		M 632-1/2"
Dia. fromDia. toItem CodeItem Name
Ø 12.5 mm209.34.001Hydraulic Screws - 19 reduced to 6.0 mm
Ø 15.2 mmØ 28.3 mm209.34.003Hydraulic Screws - 19 reduced to 9.5 mm
Ø 28.3 mm209.34.002Hydraulic Screws - 19 x 120 mm
Ø 30.5 mm209.34.003Hydraulic Screws - 19 reduced to 9.5 mm
Ø 32.5 mmØ 63.5 mm209.34.002Hydraulic Screws - 19 x 120 mm

Aksesoris Terkait

Panel Tristar Standard Punch & Die Set

Panel Square Punch & Die

Panel Split Hole Punch TriCut – ISO Sizes – Set

Panel Round Punch and Dies

Panel Rectangular Punch & Die

The post Panel Tristar Standard Punch & Die appeared first on PT. Bumi Teknik Utama.

]]> Panel Round Punch and Dies https://www.bumi.info/product/panel-round-punch-and-dies/ Mon, 19 Aug 2019 18:13:55 +0000 https://www.bumiteknik.com/?post_type=product&p=32857

[button title="Unduh Katalog (237 KB)" link="/wp-content/uploads/2024/03/B1-B2-Panel-Round-Punch-Die-.pdf" target="_blank" align="" icon="icon-download" icon_position="left" color="#d6d6d6" font_color="#ed0b0b" size="1" full_width="" class="" download="Panel Round Punch & Die" onclick=""]



Bagikan ke : [sharethis-inline-buttons]

The post Panel Round Punch and Dies appeared first on PT. Bumi Teknik Utama.

]]>

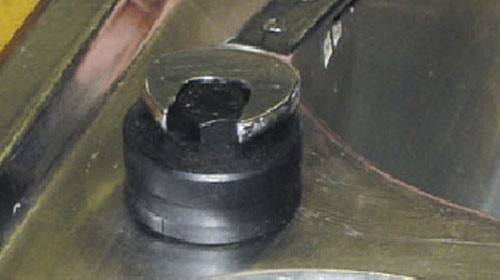

Panel Round Punch & Die - Ø12.7 mm - Ø82.0 mm Aplikasi 1

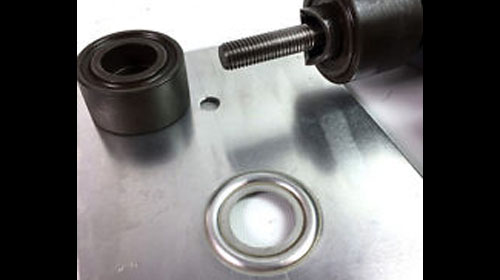

Panel Round Punch & Die - Ø12.7 mm - Ø82.0 mm Aplikasi 2

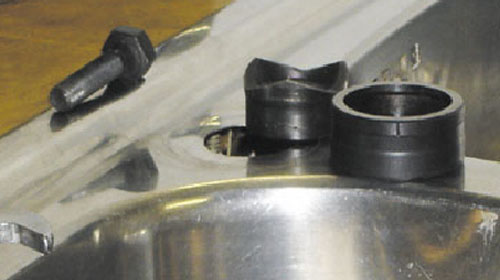

Panel Round Punch & Die - Ø12.7 mm - Ø82.0 mm Aplikasi 3

Keunggulan Produk

● Untuk meninju lubang ke baja ringan dan stainless steel, plastik dll.
● Dengan cepat tanpa usaha, bersih dan tanpa gerinda.
● Mampu untuk semak kabel.
● Berlaku untuk Mesin Hidraulik Compact, Combi Kompak, Tangan dan Pompa Kaki.

Lihat di bawah untuk Diameter

Item CodeItem NamePGInchMConduit
209.26.001Hole Punch MonoCut Ø 12.7 mmPG 71/2"M 12
209.26.002Hole Punch MonoCut Ø 15.2 mmPG 9
209.26.003Hole Punch MonoCut Ø 16.0 mmM 16
209.26.004Hole Punch MonoCut Ø 16.7 mm
209.26.005Hole Punch MonoCut Ø 18.6 mmPG 11
209.26.006Hole Punch MonoCut Ø 19.0 mm3/4"
209.26.007Hole Punch MonoCut Ø 20.0 mm
209.26.008Hole Punch MonoCut Ø 20.4 mmPG 13M 20
209.26.009Hole Punch MonoCut Ø 22.0 mm
209.26.010Hole Punch MonoCut Ø 22.5 mmPG 167/8"1/2"
209.26.011Hole Punch MonoCut Ø 25.0 mm
209.26.012Hole Punch MonoCut Ø 25.4 mmM 25 - 13/4"
209.26.013Hole Punch MonoCut Ø 27.0 mm
209.26.014Hole Punch MonoCut Ø 28.3 mm x 19PG 213/4"
209.26.015Hole Punch MonoCut Ø 28.3 mm x 9.5PG 213/4"
209.26.016Hole Punch MonoCut Ø 28.6 mm
209.26.017Hole Punch MonoCut Ø 30.1 mm x 9.5
209.26.042Hole Punch MonoCut Ø 30.1 mm x 19
209.26.018Hole Punch MonoCut Ø 30.5 mm x 9.51-7/32"
209.26.019Hole Punch MonoCut Ø 31.7 mm1-1/4"
209.26.020Hole Punch MonoCut Ø 32.5 mmM 32
209.26.021Hole Punch MonoCut Ø 34.6 mm1"
209.26.022Hole Punch MonoCut Ø 35.0 mm x 191-3/8"
209.26.023Hole Punch MonoCut Ø 35.0 mm x 9.51-3/8"
209.26.024Hole Punch MonoCut Ø 37.0 mmPG 29
209.26.025Hole Punch MonoCut Ø 38.0 mm1-1/2"
209.26.026Hole Punch MonoCut Ø 40.5 mmM 40
Hole Punch MonoCut Ø 43.2 mm1-1/4"
209.26.027Hole Punch MonoCut Ø 42.8 mm
209.26.028Hole Punch MonoCut Ø 44.4 mm1-11/16"
209.26.029Hole Punch MonoCut Ø 47.0 mmPG 36
209.26.030Hole Punch MonoCut Ø 49.6 mm1-15/16"1-1/2"
209.26.031Hole Punch MonoCut Ø 50.5 mmM 50
209.26.032Hole Punch MonoCut Ø 54.0 mmPG 422-1/8"
209.26.033Hole Punch MonoCut Ø 60.0 mmPG 48
209.26.034Hole Punch MonoCut Ø 61.5 mm2-3/8"2"
209.26.035Hole Punch MonoCut Ø 63.5 mm2-1/2"M 63
209.26.036Hole Punch MonoCut Ø 68.0 mm
209.26.037Hole Punch MonoCut Ø 70.0 mm2-3/4"
Hole Punch MonoCut Ø 70.6 mm
Hole Punch MonoCut Ø 74.0 mm2-7/8"2-1/2"
Hole Punch MonoCut Ø 75.5 mm2-7/8"M 75
209.26.039Hole Punch MonoCut Ø 76.2 mm3"
209.26.040Hole Punch MonoCut Ø 80.0 mm3-1/8"
209.26.041Hole Punch MonoCut Ø 82.0 mm
209.29.001Hole Punch MonoCut Ø 89.0 mm3-1/2"
209.29.002Hole Punch MonoCut Ø 92.0 mm3-5/8"
209.29.003Hole Punch MonoCut Ø 100.5 mm
209.29.004Hole Punch MonoCut Ø 115.5 mm4-1/2"
209.29.005Hole Punch MonoCut Ø 120.0 mm
Optional Accessories
209.34.002Hydraulic Screws - 19 x 120 mm
209.34.003Hydraulic Screws - 19 reduced to 9.5 mm
209.34.004Hydraulic Screws - 9.5 x 75 mm

Aksesoris Terkait

Panel Tristar Standard Punch & Die Set

Panel Tristar Standard Punch & Die

Panel Square Punch & Die

Panel Split Hole Punch TriCut – ISO Sizes – Set

Panel Rectangular Punch & Die

The post Panel Round Punch and Dies appeared first on PT. Bumi Teknik Utama.

]]>
