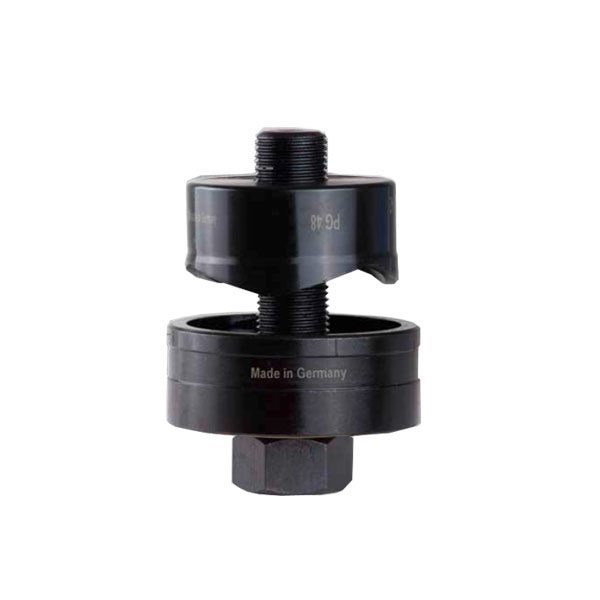

Panel Round Punch and Dies

Unduh Katalog (237 KB)

Bagikan ke :

SKU: 209.26.001 Categories: Aksesoris, Aksesoris - Panel Hidrolik Punching, Alfra

Description

Panel Round Punch & Die - Ø12.7 mm - Ø82.0 mm Aplikasi 1

Panel Round Punch & Die - Ø12.7 mm - Ø82.0 mm Aplikasi 2

Panel Round Punch & Die - Ø12.7 mm - Ø82.0 mm Aplikasi 3

Keunggulan Produk

● Untuk meninju lubang ke baja ringan dan stainless steel, plastik dll.
● Dengan cepat tanpa usaha, bersih dan tanpa gerinda.
● Mampu untuk semak kabel.
● Berlaku untuk Mesin Hidraulik Compact, Combi Kompak, Tangan dan Pompa Kaki.

Lihat di bawah untuk Diameter

Item Code	Item Name	PG	Inch	M	Conduit
209.26.001	Hole Punch MonoCut Ø 12.7 mm	PG 7	1/2"	M 12
209.26.002	Hole Punch MonoCut Ø 15.2 mm	PG 9
209.26.003	Hole Punch MonoCut Ø 16.0 mm			M 16
209.26.004	Hole Punch MonoCut Ø 16.7 mm
209.26.005	Hole Punch MonoCut Ø 18.6 mm	PG 11
209.26.006	Hole Punch MonoCut Ø 19.0 mm		3/4"
209.26.007	Hole Punch MonoCut Ø 20.0 mm
209.26.008	Hole Punch MonoCut Ø 20.4 mm	PG 13		M 20
209.26.009	Hole Punch MonoCut Ø 22.0 mm
209.26.010	Hole Punch MonoCut Ø 22.5 mm	PG 16	7/8"		1/2"
209.26.011	Hole Punch MonoCut Ø 25.0 mm
209.26.012	Hole Punch MonoCut Ø 25.4 mm			M 25 - 1	3/4"
209.26.013	Hole Punch MonoCut Ø 27.0 mm
209.26.014	Hole Punch MonoCut Ø 28.3 mm x 19	PG 21			3/4"
209.26.015	Hole Punch MonoCut Ø 28.3 mm x 9.5	PG 21			3/4"
209.26.016	Hole Punch MonoCut Ø 28.6 mm
209.26.017	Hole Punch MonoCut Ø 30.1 mm x 9.5
209.26.042	Hole Punch MonoCut Ø 30.1 mm x 19
209.26.018	Hole Punch MonoCut Ø 30.5 mm x 9.5		1-7/32"
209.26.019	Hole Punch MonoCut Ø 31.7 mm		1-1/4"
209.26.020	Hole Punch MonoCut Ø 32.5 mm			M 32
209.26.021	Hole Punch MonoCut Ø 34.6 mm				1"
209.26.022	Hole Punch MonoCut Ø 35.0 mm x 19		1-3/8"
209.26.023	Hole Punch MonoCut Ø 35.0 mm x 9.5		1-3/8"
209.26.024	Hole Punch MonoCut Ø 37.0 mm	PG 29
209.26.025	Hole Punch MonoCut Ø 38.0 mm		1-1/2"
209.26.026	Hole Punch MonoCut Ø 40.5 mm			M 40
	Hole Punch MonoCut Ø 43.2 mm				1-1/4"
209.26.027	Hole Punch MonoCut Ø 42.8 mm
209.26.028	Hole Punch MonoCut Ø 44.4 mm		1-11/16"
209.26.029	Hole Punch MonoCut Ø 47.0 mm	PG 36
209.26.030	Hole Punch MonoCut Ø 49.6 mm		1-15/16"		1-1/2"
209.26.031	Hole Punch MonoCut Ø 50.5 mm			M 50
209.26.032	Hole Punch MonoCut Ø 54.0 mm	PG 42	2-1/8"
209.26.033	Hole Punch MonoCut Ø 60.0 mm	PG 48
209.26.034	Hole Punch MonoCut Ø 61.5 mm		2-3/8"		2"
209.26.035	Hole Punch MonoCut Ø 63.5 mm		2-1/2"	M 63
209.26.036	Hole Punch MonoCut Ø 68.0 mm
209.26.037	Hole Punch MonoCut Ø 70.0 mm		2-3/4"
	Hole Punch MonoCut Ø 70.6 mm
	Hole Punch MonoCut Ø 74.0 mm		2-7/8"		2-1/2"
	Hole Punch MonoCut Ø 75.5 mm		2-7/8"	M 75
209.26.039	Hole Punch MonoCut Ø 76.2 mm		3"
209.26.040	Hole Punch MonoCut Ø 80.0 mm		3-1/8"
209.26.041	Hole Punch MonoCut Ø 82.0 mm
209.29.001	Hole Punch MonoCut Ø 89.0 mm		3-1/2"
209.29.002	Hole Punch MonoCut Ø 92.0 mm		3-5/8"
209.29.003	Hole Punch MonoCut Ø 100.5 mm
209.29.004	Hole Punch MonoCut Ø 115.5 mm		4-1/2"
209.29.005	Hole Punch MonoCut Ø 120.0 mm
