Keunggulan Produk
● Busbar dengan kecepatan 120 x 12 mm (160 x 10 mm berdasarkan permintaan) dapat dengan mudah ditekuk menggunakan silinder kerja universal, dan lubang Ø 6,6 hingga 21,5 mm termasuk lubang memanjang dapat dilubangi melalui insersiasi lubang tinju yang sederhana.
| Pompa hidrolik | AHP-S |
| Maks. Tekanan | 700 Bar |
| Maks. laju aliran | 0.58 l/min |
| Jenis Oli | HLP 32 Oil |
| Filling volume | 3.0 l |
| Working volume | 2.2 l |
| Daya | 0.75 KW |
| Current consumption | 3.26 A |
| Kecepatan motor | 2.800 RPM |
| Tegangan motor | 230 V / 50 Hz |
| Dimensi (P x L x T) | 402 x 297 x 339 mm |
| Berat | 27 kg |
| Item Code | Item Name |
| 109.06.007.3 | Busbar Bending set 2 |

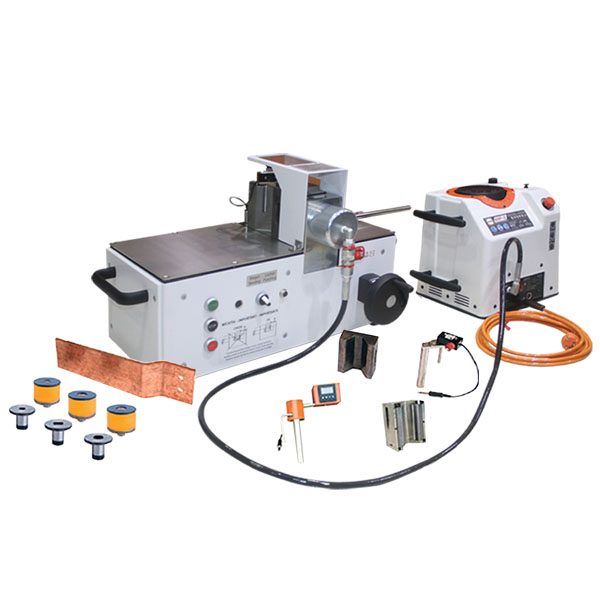

| 109.06.008 | Busbar bending and hole punching device |
| 109.08.004 | Electro-Hydraulic Pump AHP S |
| Bending | |
| Copper | 120 x 12 mm |
| Angle | up to 90º |
| Smaller length of leg | 50 mm |
| Smallest U bending | 100 mm |
| Smallest Z bending | 72 mm depend on material thickness |
| Punching | |
| Round P/D | 6.6 – 21.5 mm |
| Oval P/D | up to 21 mm |
| Material thickness | 12 mm |
| Material width | 110 mm |
| Dimension (L x W x H) | 700 x 410 x 410 mm |
