Penggunaan Utama
● Galangan kapal.
● Fabrikator.
● Kontruksi Baja.
Keunggulan
● Pemotongan pipa berukuran dari 100 hingga 600 mm dengan rantai standar, atau lebih dengan rantai ekstra.
● Rantai saling mengunci, menambah dan mengurangi rantai untuk pipa besar dan kecil.
● Sistem kopling, agar mudah diposisikan dan disejajarkan.
● Pengoperasian yang mudah dengan quick valve.
| Spesifikasi | |
| Diameter pemotongan pipa | 100 - 600 mm , Standard |
| Over 600 mm , Extra Chain | |
| Ketebalan pemotongan pipa | 5 - 50 mm |
| Sudut bevel | 0 - 45º |

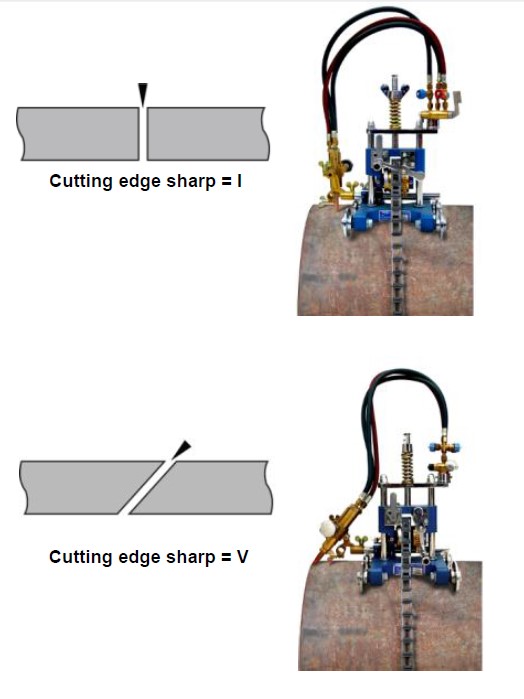

| Cutting edge sharp | I and V ( 45º ) |
| Torch | Single |
| Dimensi (P x L x T) | 325 x 325 x 425 mm |
| Berat | 15 Kg |
| Item Code | Item Name |
| 101.11.007.1 | KC 11 - Pipe Cutting Package |
| + Chain 2.5 m - 1pcs | |
| + Cutting torch - 1 pcs | |
| + Spanner 15 & 20 - 1 pcs | |
| + Spanner 17 & 24 - 1 pcs | |
| + Tip cleaner - 1 pcs | |
| + Gas cutting nozzle - No. 1, 2, 3 for LPG - 1 pcs | |
| Standard Accessories | |
| 101.11.007 | KC 11 - Pipe Cutting |
| 201.23.006 | Oxygen Gas Regulator |
| Standard Alternative | |
| 201.23.008 | LPG Gas Regulator |
| 201.23.007 | Acetylene Gas Regulator |
| Optional Accessories | |
| 201.19.002 | Chain 2.5 m KC 11, KC 11 A |
| 201.25.001 | Gas Cutting Nozzle - No. 00 - Acetylene |
| 201.25.002 | Gas Cutting Nozzle - No. 0 - Acetylene |
| 201.25.003 | Gas Cutting Nozzle - No. 1 - Acetylene |
| 201.25.004 | Gas Cutting Nozzle - No. 2 - Acetylene |
| 201.25.005 | Gas Cutting Nozzle - No. 3 - Acetylene |
| 201.25.006 | Gas Cutting Nozzle - No. 4 - Acetylene |
| 201.25.007 | Gas Cutting Nozzle - No. 5 - Acetylene |
| 201.25.008 | Gas Cutting Nozzle - No. 00 - LPG |
| 201.25.009 | Gas Cutting Nozzle - No. 0 - LPG |
| 201.25.010 | Gas Cutting Nozzle - No. 1 - LPG |
| 201.25.011 | Gas Cutting Nozzle - No. 2 - LPG |
| 201.25.012 | Gas Cutting Nozzle - No. 3 - LPG |
| 201.25.013 | Gas Cutting Nozzle - No. 4 - LPG |
| 201.25.014 | Gas Cutting Nozzle - No. 5 - LPG |
