Penggunaan Utama
● Instalasi dan outfitting
● Perbaikan dan pemeliharaan
● Industri kimia dan pengolahan
● Mekanis dan elektrikal
● Perakitan stainless steel
Keunggulan
● Mesin las argon TIG yang luar biasa dengan performa tinggi dan memiliki berat yang ringan.
● Fungsi ganda untuk TIG / MMA dan mudah dioperasikan.

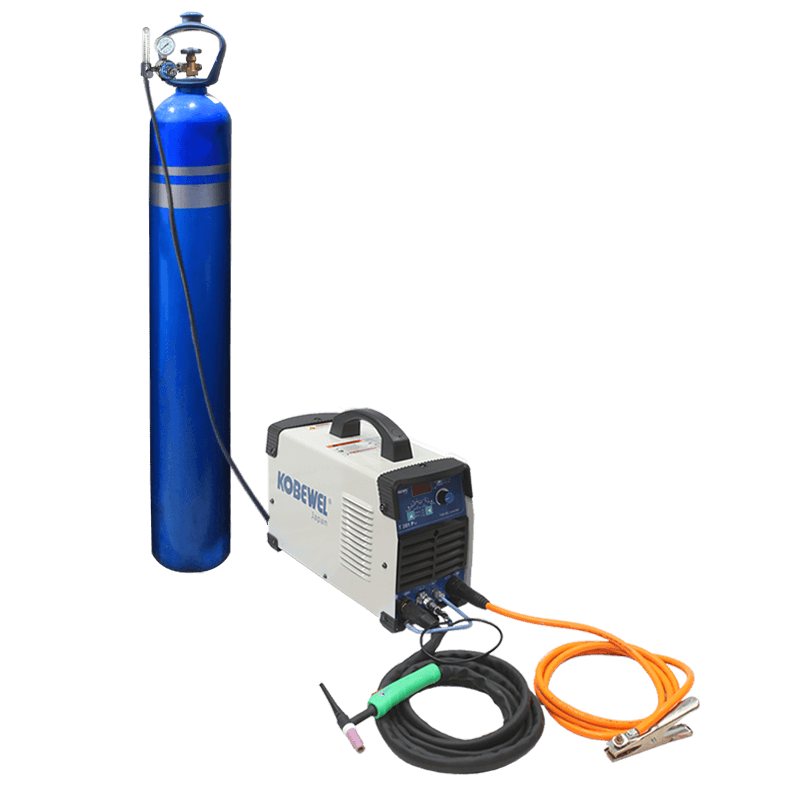

● TIG: Pengelasan TIG HF – DC dengan pengendali digital.
● TIG: Frekuensi pulse pada 2 Hz dan 200 Hz.
● TIG : Down slope time 0 – 5 detik.
● TIG : Post flow time 0 – 15 detik.
● TIG : Fungsi 2T / 4T / Spot.
● MMA: Arc Force Otomatis di MMA, mengurangi percikan.
● MMA: fungsi hot start dan anti lengket otomatis.
| Spesifikasi | |
| Input power at max. Current | 6.0 KVA |
| Input current at 100 % | 27.5 A |
| Input phase | 1 Phase |
| Main voltage | 220 V |
| Frekuensi | 50 / 60 Hz |
| Power factor | 0.7 |
| Efisiensi | 0.85 |
| Index protection | IP 21 S |
| Insulation class | F |
| Pendingin | F |
| Dimensi (P x L x T) | 365 x 135 x 277 mm |
| Berat | 6.125 Kg |
| Item Code | Item Name |
| 101.07.003.1 | T 201 P - TIG DC Air Cooled Package |
| + Control plug 5 pin - 1 pcs | |
| + Gas in connector - 1 pcs | |
| + Gas out connector - 1 pcs | |
| + Ground + cable at 3 m - 1 set | |
| Standard Accessories | |
| 101.07.003 | TIG DC Pulse Inverter - T 201 P DC |
| 201.11.003 | Plug to Ground Clamp 300 A, 35 mm2 at 3 m - Inverter |
| 201.12.001 | Regulator Gas Hose - Blue at 1.5 m |
| 201.23.001 | Argon Gas Regulator |
| Standard Alternative | |
| 203.16.007 | Tig Torch - SINTIG 17 at 4 m |
| 203.16.009 | Tig Torch - SINTIG 17 at 8 m |
| 203.16.010 | Tig Torch - SINTIG 26 at 4 m |
| 203.16.012 | Tig Torch - SINTIG 26 at 8 m |
| 203.16.015 | Tig Torch - SINTIG 9 at 4 m |
| 201.22.009 | Welding Helmet - Solarmatic Blue |
| 201.22.010 | Welding Helmet - Solarmatic Red |
| 201.22.011 | Welding Helmet - Solarmatic Green |
| General Accessories | |
| 137.01.001 | Tungsten Grinder - 240V-50/60HZ - Neutrix |
| 208.18.001 | Torch Holder - TIG |
| Item Code | Item Name |
| 101.07.003.2 | T 201 P - TIG DC Water Cooled Package |
| + Control plug 5 pin - 1 pcs | |
| + Gas in connector - 1 pcs | |
| + Gas out connector - 1 pcs | |
| + Ground + cable at 3 m - 1 set | |
| Standard Accessories | |
| 101.07.003 | TIG DC Pulse Inverter - T 201 P DC |
| 201.11.003 | Plug to Ground Clamp 300 A, 35 mm2 at 3 m - Inverter |
| 201.12.001 | Regulator Gas Hose - Blue at 1.5 m |
| 201.23.001 | Argon Gas Regulator |
| 101.12.003 | D 300 - Water Cooler Machine |
| 208.11.001 | Water Cooled Hose Package - Blue & Red at 1 m |
| Standard Alternative | |
| 203.16.017 | Tig Torch - Water Cooled - SINTIG 20 at 4 m |
| 203.16.013 | Tig Torch - Water Cooled - SINTIG 18 at 4 m |
| 203.16.014 | Tig Torch - Water Cooled - SINTIG 18 at 8 m |
| 201.22.009 | Welding Helmet - Solarmatic Blue |
| 201.22.010 | Welding Helmet - Solarmatic Red |
| 201.22.011 | Welding Helmet - Solarmatic Green |
| General Accessories | |
| 137.01.001 | Tungsten Grinder - 240V-50/60HZ - Neutrix |
| 208.18.001 | Torch Holder - TIG |

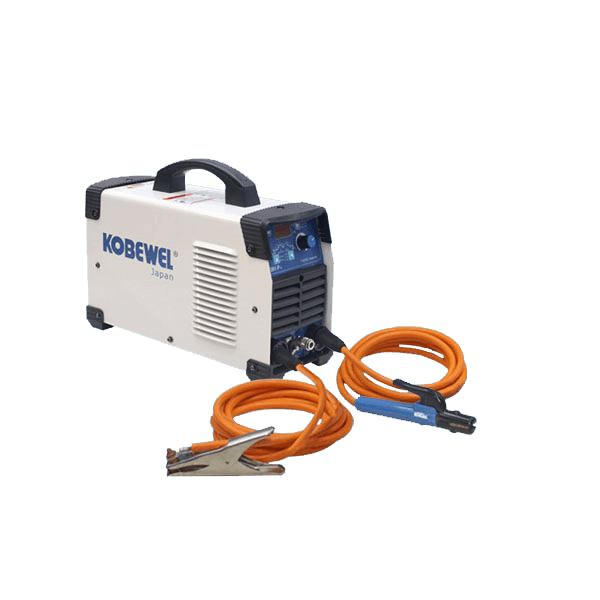

| MMA | |
| Welding range | 10 - 180 A |
| Electrode range | 1.6 - 4.0 mm |
| Material thickness | 1 - 10 mm |
| Load voltage | 20.4 - 25.0 V |
| Open circuit voltage | 65 V |
| Current at 60 % ( 40°C ) | 137 A |
| Current at 100 % ( 40°C ) | 106 A |
| Optional Accessories | |
| 208.03.009 | Plug to Electrode Holder 400 A, 35 mm2 at 5 m |
| 208.03.010 | Plug to Electrode Holder 400 A, 35 mm2 at 10 m |
