Penggunaan Utama
● Cocok untuk perbengkelan.
● Pemeliharaan dan perbaikan.
● Mekanik dan Kelistrikan.
Keunggulan

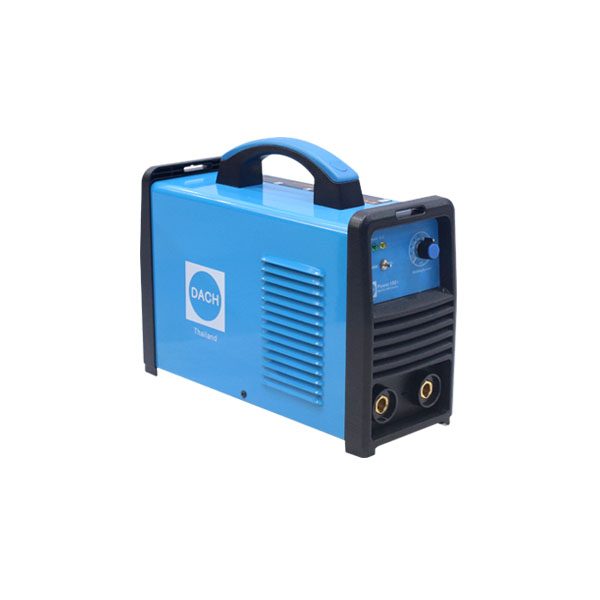

● Mesin las listrik DACH Power 180i ini dilengkapi Teknologi MMA dengan IGBT Inverter.
● Arus pengelasan yang stabil dan percikan api las yang lebih sedikit.
● Teknologi Arc Force dan Anti Lengket otomatis.
● Desain yang ringkas dan berat ringan.
| MMA | |
| Weldable elektroda | 1.6 - 4.0 mm |
| Ketebalan material | 1 - 6 mm |

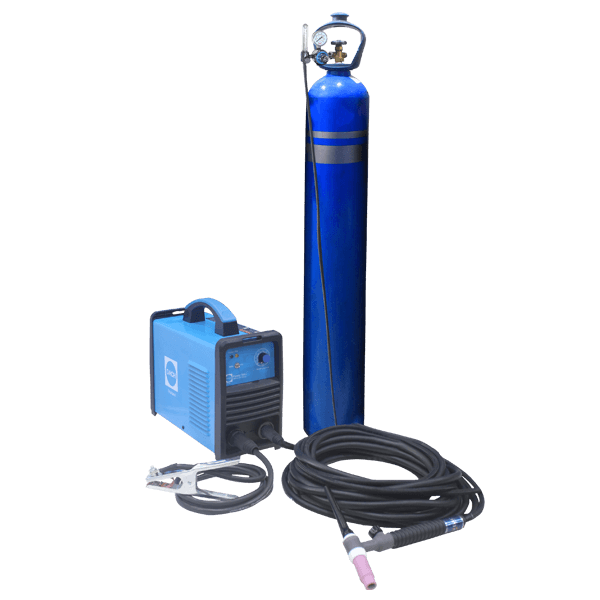

| TIG | |
| Rentang Tungsten | 1.0 - 2.4 mm |
| Ketebalan material | 1 - 3 mm |
| Spesifikasi | |
| Rentang pengelasan | 10 - 180 A |
| Tegangan beban | 20.8 - 27.2 V |
| Tegangan tanpa beban | 62 V |
| Current at 60 % (40° C) | 180 A |
| Current at 100 % (40° C) | 139 A |
| Input power at 100 % | 7.6 KVA |
| Input current at 100 % | 24.4 A |
| Input phase | 1 Phase |
| Tegangan utama | 220 V |
| Power factor | 0.76 |
| Protection class | IP 23 |
| Insulation | F |
| Pendinginan | F |
| Dimensi (P x L x T) | 460 x 230 x 350 mm |
| Berat | 7 Kg |
| Item Code | Item Name |
| 108.04.002 | MMA Inverter - Power 180 i |
| + Plug to Ground, 25 mm2 at 1,5 m - 1 Set | |
| + Plug to Electrode Holder, 25 mm2 at 2 m - 1 Set | |
| General Accessories | |
| 201.22.009 | Welding Helmet - Solarmatic Blue |
| 201.22.010 | Welding Helmet - Solarmatic Red |
| 201.22.011 | Welding Helmet - Solarmatic Green |
| Item Code | Item Name |
| 208.17.006 | Tig Torch - WP 17 V-25-2 at 8 m |
| 208.17.007 | Tig Torch - WP 26 V-25-2 at 8 m |
| 201.23.001 | Argon Gas Regulator |
| 250.01.006.1 | Plug - Male 35 - 50 mm |
| General Accessories | |
| 208.18.001 | Torch Holder - TIG |
| 201.22.009 | Welding Helmet - Solarmatic Blue |
| 201.22.010 | Welding Helmet - Solarmatic Red |
| 201.22.011 | Welding Helmet - Solarmatic Green |
