Penggunaan Utama
● Instalasi dan outfitting.
● Produsen Baja.
● Industri Kimia dan Pengolahan.
● Konstruksi.
● Mekanis dan Kelistrikan.
● Tangki Logam.
● Lembaran Logam.
● Galangan Kapal.
Keunggulan

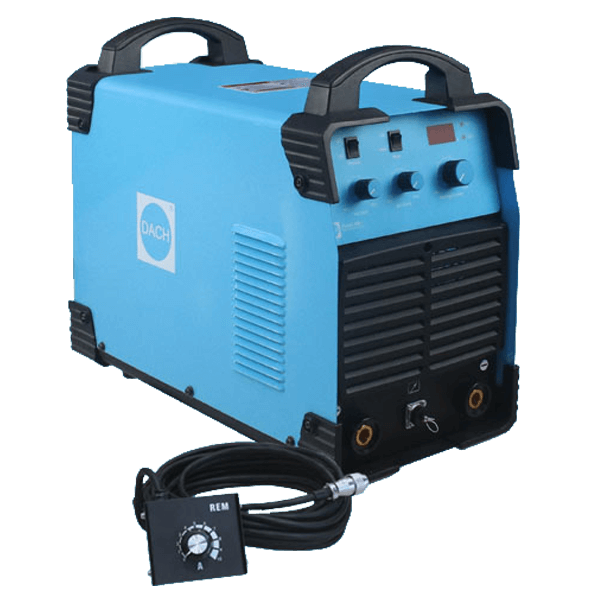

● Mesin las listrik DACH Power 400i ini dilengkapi dengan pengelasan MMA/SMAW DC Inverter, fitur pengapian dan sifat pengelasan yang sangat baik.
● Desain yang ringkas dan kuat, berat ringan & mudah digunakan.
● Teknologi IGBT Inverter untuk ketahanan yang lebih baik.
● Layar tampilan digital untuk Arus Pengelasan.
● Hot Start bisa disesuaikan untuk arus pengelasan yang mudah menyala.
● Fungsi Arc Force yang bisa disesuaikan untuk mengurangi percikan.
● Fungsi Scratch TIG – DC Welding.
● Kenop untuk memilih pengelasan Lift Arc TIG.
● Mendukung alat kendali jarak jauh.
| MMA | |
| Weldable elektroda | 1.6 - 8.0 mm |
| Ketebalan material | 1 - 20 mm |
| TIG | |
| Rentang tungsten | 1.6 - 4.0 mm |
| Ketebalan material | 1 - 10 mm |
| Spesifikasi | |
| Rentang pengelasan | 30 - 400 A |
| Tegangan beban | 21.2 - 36 V |
| Tegangan tanpa beban | 66 V |
| Current at 60 % ( 40° C ) | 400 A |
| Current at 100 % ( 40° C ) | 310 A |
| Input power at 100 % | 14.2 KVA |
| Input current at 100 % | 21.4 A |
| Input phase | 3 Phase |
| Tegangan utama | 380 V |
| Power factor | 0.95 |
| Protection class | IP 21S |
| Insulation | F |
| Pendinginan | F |
| Dimensi (P x L x T) | 618 x 330 x 441 mm |
| Berat | 24 Kg |
| Item Code | Item Name |
| 108.05.001.1 | MMA Inverter - Power 400 i Package |
| Standard Accessories | |
| 108.05.001 | MMA Inverter - Power 400i |
| 208.29.002 | Plug to Electrode Holder 400 A, at 3 m |
| 208.29.003 | Plug to Ground Clamp 400 A, at 3 m |
| Optional Accessories | |
| 208.03.001 | Plug to Electrode Holder 600 A, 70 mm2 at 5 m |
| 208.03.002 | Plug to Electrode Holder 600 A, 70 mm2 at 10 m |
| 208.03.003 | Plug to Electrode Holder 600 A, 70 mm2 at 20 m |
| 208.03.006 | Plug to Electrode Holder 400 A, 50 mm2 at 10 m |
| 208.03.007 | Plug to Electrode Holder 400 A, 50 mm2 at 20 m |
| 208.03.008 | Plug to Electrode Holder 400 A, 50 mm2 at 25 m |
| 208.04.004 | Plug to Ground Clamp 600 A, 70 mm2 at 5 m |
| 208.04.005 | Plug to Ground Clamp 600 A, 70 mm2 at 10 m |
| 208.04.006 | Plug to Ground Clamp 600 A, 70 mm2 at 15 m |
| 208.04.008 | Plug to Ground Clamp 600 A, 50 mm2 at 10 m |
| 208.29.001 | Remote Control - Power 400 i - at 10 m |
| General Accessories | |
| 201.22.009 | Welding Helmet - Solarmatic Blue |
| 201.22.010 | Welding Helmet - Solarmatic Red |
| 201.22.011 | Welding Helmet - Solarmatic Green |
| Optional Accessories | |
| 208.17.006 | Tig Torch - WP 17 V-25-2 at 8 m |
| 208.17.007 | Tig Torch - WP 26 V-25-2 at 8 m |
| 201.23.001 | Argon Gas Regulator |
| 250.01.006.1 | Plug - Male 35 - 50 mm |
| General Accessories | |
| 208.18.001 | Torch Holder - TIG |
| 201.22.009 | Welding Helmet - Solarmatic Blue |
| 201.22.010 | Welding Helmet - Solarmatic Red |
| 201.22.011 | Welding Helmet - Solarmatic Green |
