Keunggulan Produk
● Pilot arc Teknologi obor pemotongan plasma.
● Perlindungan, kepala obor terintegrasi dalam pegangan plastik.
● Bobot Ringan, integrasi kepala obor di pegangan memiliki bobot yang lebih ringan.
● Segel, berikan penghalang yang efektif terhadap pintu masuk yang memotong debu di dalam gagang.
| Spesifikasi | |
| Severence Cutting | 50 mm |
| Pemotongan kualitas | 35 mm |
| Voltage Class | M |
| Panjang standar | 6 m |
| Konsumsi udara | 230 l/min |
| Tekanan udara | 5 bar |
| Duty cycle 60 % | 150 A |
| Duty cycle 100 % | 120 A |
| Item Code | Item Name |

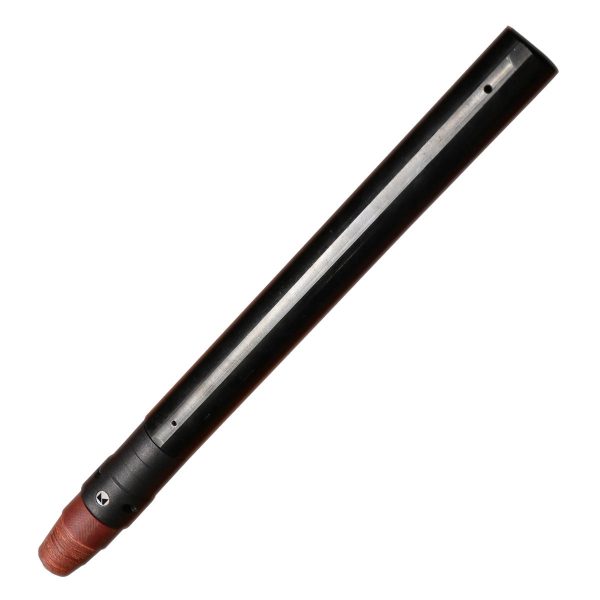

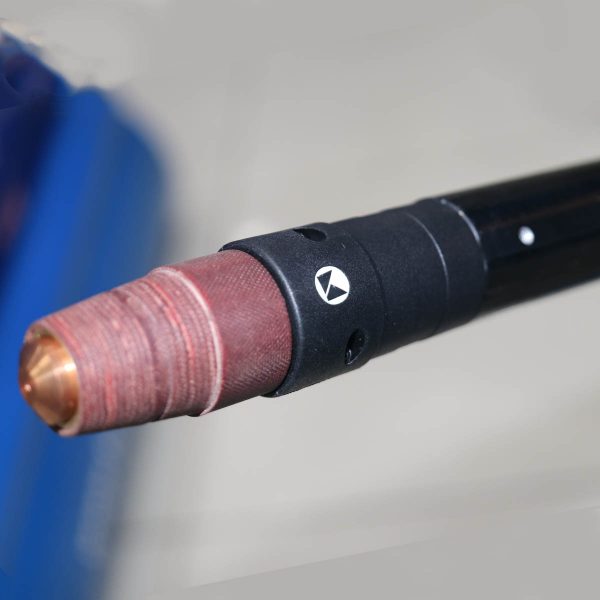

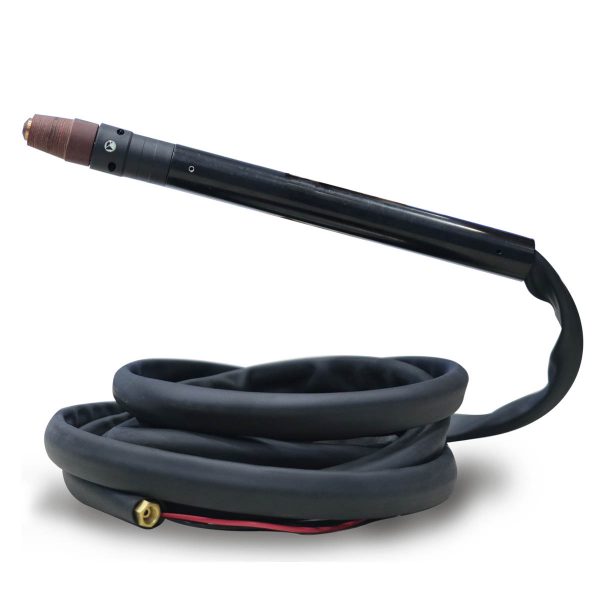

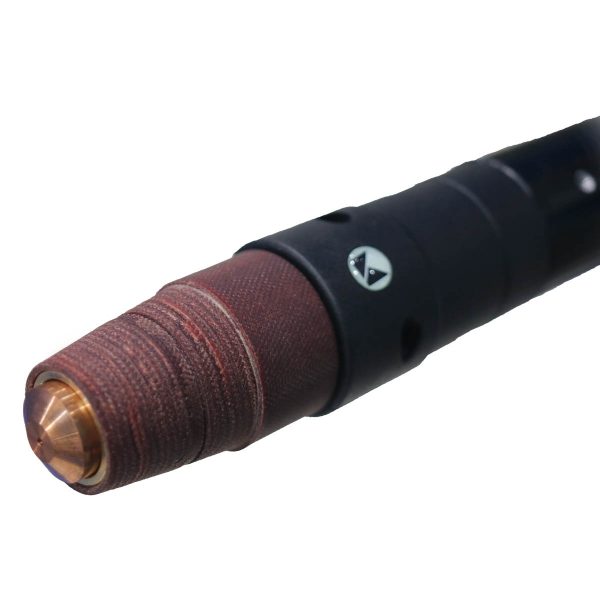

| 250.37.001 | Plasma Cutting Torch - Autocut P151 - Package |
| Pos | Item Code | Item Name | MoQ |
| 1 | 250.36.021.1 | Stand Off Guide - Pro Cut 151 - 2 Pcs | 1 Pc |
| 2 | 250.36.005.1 | Nozzle Retaining Cap - Pro Cut 151 - 2 Pcs | 1 Pc |
| 3 | 250.36.007.1 | Plasma Nozzle Ø 1.4 mm - 100 A - Pro Cut 151 - 10 Pcs | 1 Pc |
| 250.36.008.1 | Plasma Nozzle Ø 1.6 mm - 130 A - Pro Cut 151 - 10 Pcs | 1 Pc | |
| 250.36.009.1 | Plasma Nozzle Ø 1.8 mm - 150 A - Pro Cut 151 - 10 Pcs | 1 Pc | |
| 4 | 250.36.012.1 | Swirl Ring - Pro Cut 151- 2 Pcs | 1 Pc |
| 5 | 250.36.013.1 | Plasma Electrode - Pro Cut 151 - 10 Pcs | 1 Pc |
| 6 | 250.36.015.1 | Diffuser - Pro Cut 151 - 1 Pc | 1 Pc |
| 7 | 250.36.016.1 | O-Ring - Pro Cut 151 - 2 Pcs | 1 Pc |
| 8 | 250.36.017.1 | Torch Head - Pro Cut 151 - 1 Pc | 1 Pc |
