Mesin Las CO
Mig Mag CC/CV Inverter Wire Feeder
Xi 350

Name: Mesin Las CO Mig Mag CC/CV Inverter Wire Feeder Xi 350
SKU: 101.16.002.1-1-1-1

Unduh Katalog (260 KB)

Bagikan ke :

Item Code: 101.16.002.1-1-1-1 Category: Mesin - GMAW / MIG MAG - Wire Feeder

Description

Penggunaan Utama

● Lembaran logam baja
● Konstruksi dan galangan kapal
● Pengelasan pipa minyak dan gas
● Pengelasan di tempat

Keunggulan

● Siklus kerja dan hasil tinggi untuk penggunaan heavy duty.
● Dirancang untuk industri menengah hingga berat yang memberikan hasil pengelasan yang andal.
● Tampilan digital untuk penyesuaian ampere pengelasan yang akurat.
● Sirkuit perlindungan yang efektif terhadap berbagai risiko kerusakan, seperti kurangnya fase, kelebihan voltase, kelebihan arus, kekurangan voltase, atau terlalu panas, menyebabkan keandalan yang tinggi selama penggunaan.
● Modul IGBT yang canggih dan dioda pemulihan cepat di seluruh dunia Bersama dengan sirkuit yang sudah ditingkatkan untuk memberikan umur panjang dan keandalan.
● Sistem wire feeder industry yang kokoh, dengan dua feed roll bergigi, drive roll yang mudah diubah dan bisa dibalik serta kenop tegangan berskala yang mudah diatur.
● Kipas mesin yang kuat untuk sistem pendinginan maksimum.

Spesifikasi

Rentang pengelasan	80 - 350 A
Tegangan beban	18 - 31.5 V
Tegangan sirkuit terbuka	55 V
Welding current at 100% duty cycle (40°C)	350 A
Input power	14 KVA
Input current	21 A
Input phase	3 Phase
Tegangan utama, Toleransi	380 V, ±20%
Frekuensi	50 / 60 Hz
Weldable steel wire	0.8 - 1.6 mm
Weldable aluminum wire	0.8 - 1.6 mm
Power factor	0.93
Index protection	IP 23
Insulation class	F
Jenis pendingin	F
Dimensi (P x L x T)	650 x 360 x 577 mm
Berat tanpa aksesoris	33 Kg

Bumi Teknik Utama kobewel Mesin Las CO2 00027f

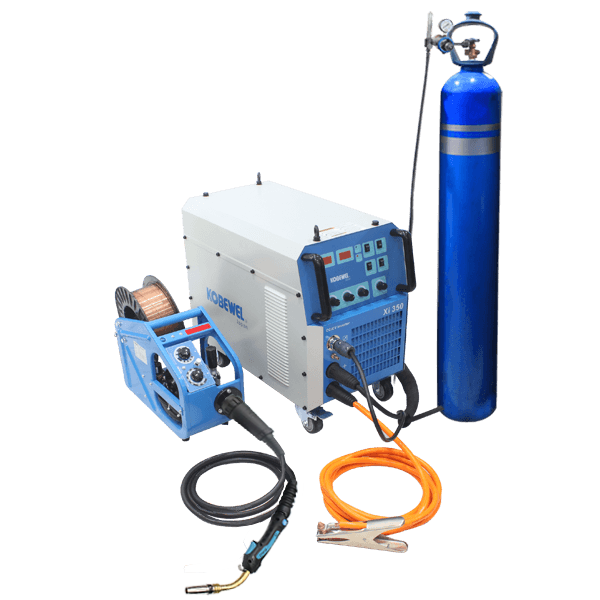

Mig Mag Air Cooled Package

Item Code	Item Name
101.16.001.1	Xi 350 - Mig Mag Inverter CC CV Wire Feeder Air Cooled Package
	+ Japanese Wire Feeder with Wire Straightener - 1 unit
	+ Interpass Cable Size 50 mm2 at 5 m - 1 set
	+ Plug to Ground Size 50 mm2 at 3 m - 1 set
	+ Gas Hose 8 mm at 5 m - 1 set
	• Hose Clamp 10 mm - 3 pcs

Standard Accessories
101.16.001	Mig Mag Inverter CC CV Wire Feeder - Xi 350
517.01.079	Rubber Sleeve for Interpass Cable Dia 40 mm - Kobewel 5 Meter

Standard Alternative
201.23.003	CO2 Heater 220V Gas Regulator
201.23.004	CO2 Fin Type Gas Regulator
201.23.001	Argon Gas Regulator
201.23.002	CO2 Gas Regulator
203.04.001	Mig Torch - Ergoplus 36 at 3 m long
203.04.002	Mig Torch - Ergoplus 36 at 4 m long
203.04.003	Mig Torch - Ergoplus 36 at 5 m long
203.03.001	Mig Torch - Ergoplus 24 at 3 m long
203.03.002	Mig Torch - Ergoplus 24 at 4 m long
203.03.003	Mig Torch - Ergoplus 24 at 5 m long

Optional Accessories
201.38.001	Feed Roll for Xi 350 & 500 - 40 x 10 x 20 mm - Ø 0.8 / 1.0 mm ( V )
201.38.002	Feed Roll for Xi 350 & 500 - 40 x 10 x 20 mm - Ø 1.0 / 1.2 mm ( V )
201.38.003	Feed Roll for Xi 350 & 500 - 40 x 10 x 20 mm - Ø 1.2 / 1.6 mm ( V )
201.38.004	Feed Roll for Xi 350 & 500 - 40 x 10 x 20 mm - Ø 0.8 / 1.0 mm ( U )
201.38.005	Feed Roll for Xi 350 & 500 - 40 x 10 x 20 mm - Ø 1.0 / 1.2 mm ( U )
201.38.006	Feed Roll for Xi 350 & 500 - 40 x 10 x 20 mm - Ø 1.2 / 1.6 mm ( U )
201.38.007	Feed Roll for Xi 350 & 500 - 40 x 10 x 20 mm - Ø 1.2 / 1.6 mm ( Knurled )
201.38.008	Feed Roll for Xi 350 & 500 - 40 x 10 x 20 mm - Ø 1.6 / 2.4 mm ( Knurled )
201.35.002	Interpass Cable size 50 mm at 10 m Air Cooled - Xi 350
201.35.003	Interpass Cable size 50 mm at 15 m Air Cooled - Xi 350
201.35.004	Interpass Cable size 50 mm at 20 m Air Cooled - Xi 350

General Accessories
201.22.009	Welding Helmet - Solarmatic Blue
201.22.010	Welding Helmet - Solarmatic Red
201.22.011	Welding Helmet - Solarmatic Green
208.18.002	Torch Holder - MIG

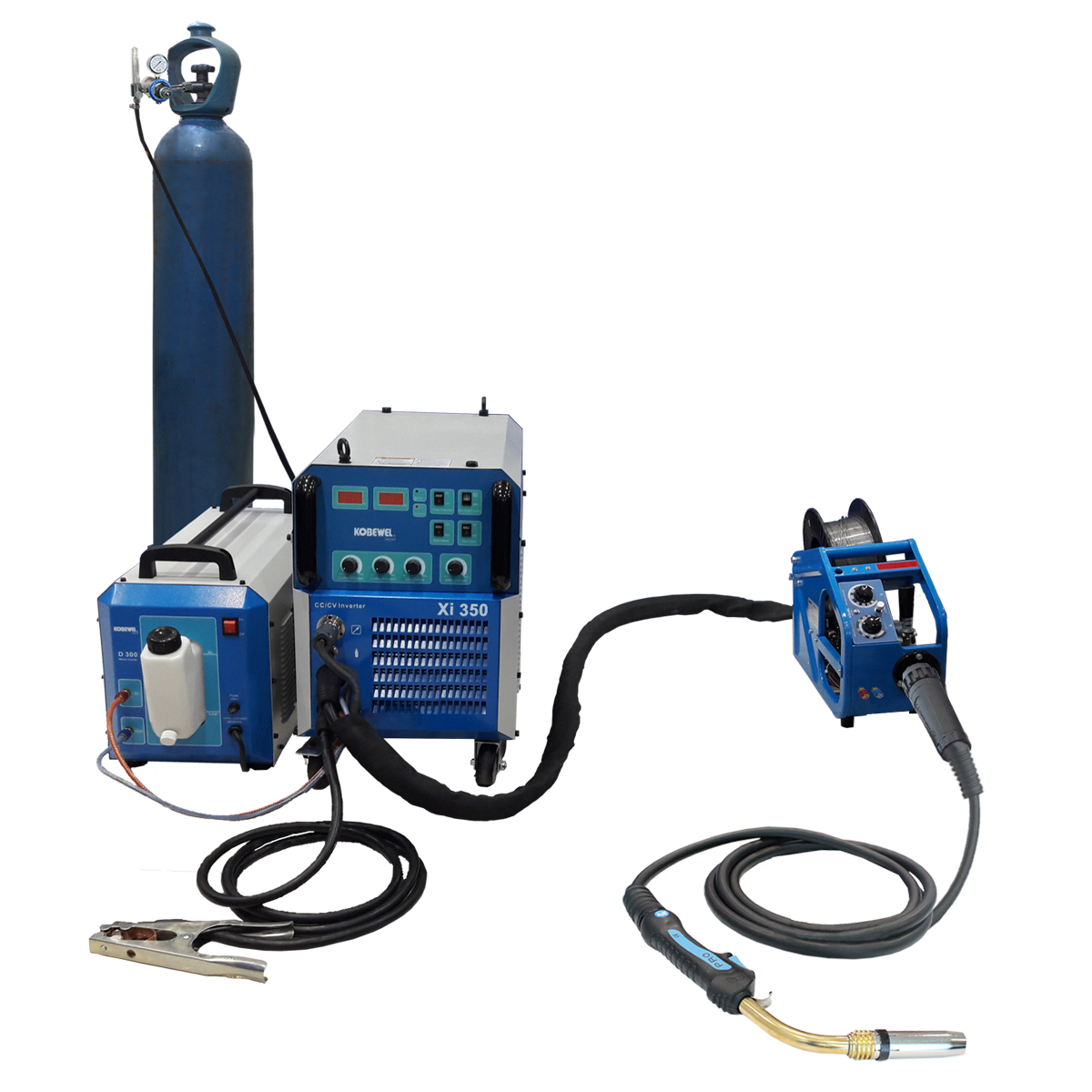

Mig Mag Water Cooled Package

Item Code	Item Name
101.16.001.2	Xi 350 - Mig Mag Inverter CC CV Wire Feeder Water Cooled Package
	+ Japanese Wire Feeder with Wire Straightener - 1 unit
	+ Interpass Cable Size 50 mm2 at 5 m - 1 set
	+ Plug to Ground Size 50 mm2 at 3 m - 1 set
	+ Gas Hose 8 mm at 5 m - 1 set
	+ Hose Clamp 10 mm - 3 pcs

Standard Accessories
101.16.001	Mig Mag Inverter CC CV Wire Feeder - Xi 350
101.12.003	D 300 - Water Cooler Machine
208.11.006	Water Cooled Hose Package Blue & Red at 6 m
517.01.033	Hose Clamp 1/2"
517.01.079	Rubber Sleeve for Interpass Cable Dia 40 mm - Kobewel

Standard Alternative
201.23.003	CO2 Heater 220V Gas Regulator
201.23.004	CO2 Fin Type Gas Regulator
201.23.001	Argon Gas Regulator
201.23.002	CO2 Gas Regulator
203.05.001	Mig Torch - Ergoplus 500 at 3 m long
203.05.002	Mig Torch - Ergoplus 500 at 4 m long

Optional Accessories
201.36.002	Interpass Cable size 50 mm at 10 m Water Cooled - Xi 350
201.36.003	Interpass Cable size 50 mm at 15 m Water Cooled - Xi 350
201.36.004	Interpass Cable size 50 mm at 20 m Water Cooled - Xi 350
201.37.001	Feed Roll for Xi - V - Ø 1.0 / 1.2 mm
201.37.002	Feed Roll for Xi - V - Ø 0.8 / 1.0 mm
201.37.003	Feed Roll for Xi - V - Ø 1.2 / 1.6 mm
201.37.004	Feed Roll for Xi - Knurled - Ø 1.2 / 1.6 mm

General Accessories
201.22.009	Welding Helmet - Solarmatic Blue
201.22.010	Welding Helmet - Solarmatic Red
201.22.011	Welding Helmet - Solarmatic Green
208.18.002	Torch Holder - MIG

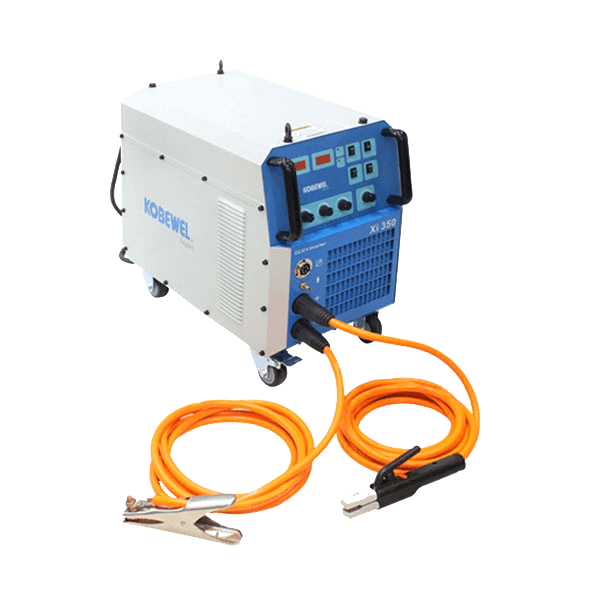

MMA Package

Item Code	Item Name
101.16.001.3	Xi 350 - MMA Package
	+ Japanese Wire Feeder with Wire Straightener - 1 unit
	+ Interpass Cable Size 50 mm2 at 5 m - 1 set
	+ Plug to Ground Size 50 mm2 at 3 m - 1 set
	+ Gas Hose 8 mm at 5 m - 1 set
	+ Hose Clamp 10 mm - 3 pcs

Standard Accessories
101.16.001	Mig Mag Inverter CC CV Wire Feeder - Xi 350
517.01.079	Rubber Sleeve for Interpass Cable - Dia 40 mm - Kobewel 5 Meter

Optional Accessories
208.04.007	Plug to Ground Clamp 600 A, 50 mm2 at 5 m
208.04.008	Plug to Ground Clamp 600 A, 50 mm2 at 10 m
208.03.005	Plug to Electrode Holder 400 A, 50 mm2 at 5 m
208.03.006	Plug to Electrode Holder 400 A, 50 mm2 at 10 m
208.03.007	Plug to Electrode Holder 400 A, 50 mm2 at 20 m
208.03.008	Plug to Electrode Holder 400 A, 50 mm2 at 25 m

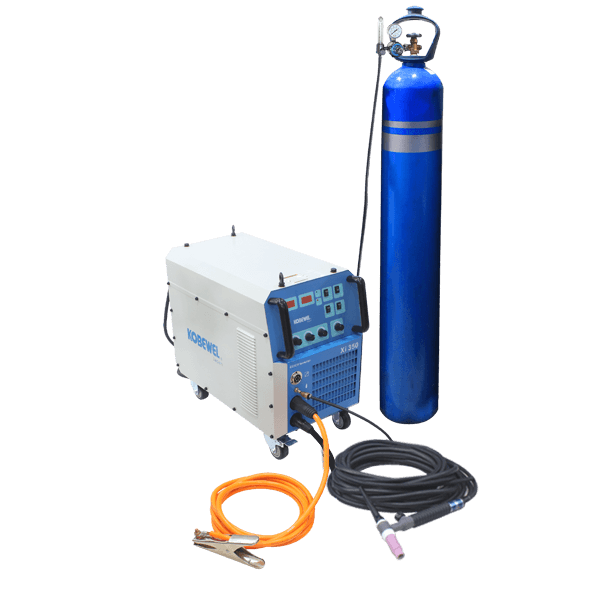

TIG Package

Item Code	Item Name
101.16.001.4	Xi 350 - TIG Package
	+ Japanese Wire Feeder with Wire Straightener - 1 unit
	+ Interpass Cable Size 70 mm2 at 5 m - 1 set
	+ Plug to Ground Size 70 mm2 at 3 m - 1 set
	+ Gas Hose 8 mm at 2 m - 1 set
	+ Hose Clamp 10 mm - 3 pcs

Standard Accessories
101.16.001	Mig Mag Inverter CC CV Wire Feeder - Xi 350
203.34.002	TIG Air Cooled Package with WP 17 V-25-2 at 8 m - 35-50
517.01.079	Rubber Sleeve for Interpass Cable - Dia 40 mm - Kobewel

General Accessories
201.22.009	Welding Helmet - Solarmatic Blue
201.22.010	Welding Helmet - Solarmatic Red
201.22.011	Welding Helmet - Solarmatic Green
208.18.001	Torch Holder - TIG
