Penggunaan Utama
● Lembaran logam baja
● Konstruksi dan galangan kapal
● Pengelasan pipa minyak dan gas
● Pengelasan di tempat
Keunggulan
● Siklus kerja dan hasil tinggi untuk penggunaan heavy duty.
● Dirancang untuk industri menengah hingga berat yang memberikan hasil pengelasan yang andal.
● Tampilan digital untuk penyesuaian ampere pengelasan yang akurat.
● Sirkuit perlindungan yang efektif terhadap berbagai risiko kerusakan, seperti kurangnya fase, kelebihan voltase, kelebihan arus, kekurangan voltase, atau terlalu panas, menyebabkan keandalan yang tinggi selama penggunaan.
● Modul IGBT yang canggih dan dioda pemulihan cepat di seluruh dunia Bersama dengan sirkuit yang sudah ditingkatkan untuk memberikan umur panjang dan keandalan.
● Sistem wire feeder industry yang kokoh, dengan dua feed roll bergigi, drive roll yang mudah diubah dan bisa dibalik derta kenop tegangan berskala yang mudah diatur.
● Kipas mesin yang kuat untuk sistem pendinginan maksimum.
| Spesifikasi | |
| Rentang pengelasan | 100 - 500 A |
| Tegangan beban | 19 - 39 V |
| Tegangan sirkuit terbuka | 63 V |
| Welding current at 100% duty cycle (40°C) | 500 A |
| Input power | 24.7 KVA |
| Input current | 37.5 A |
| Input phase | 3 Phase |
| Tegangan utama, Toleransi | 380 V, ±20% |
| Frekuensi | - |
| Weldable steel wire | 0.8 - 1.6 mm |
| Weldable aluminum wire | 0.8 - 1.6 mm |
| Power factor | 0.93 |
| Index protection | IP 23 |
| Insulation class | F |
| Jenis pendingin | F |
| Dimensi (P x L x T) | 650 x 360 x 577 mm |
| Berat tanpa aksesoris | 38 Kg |

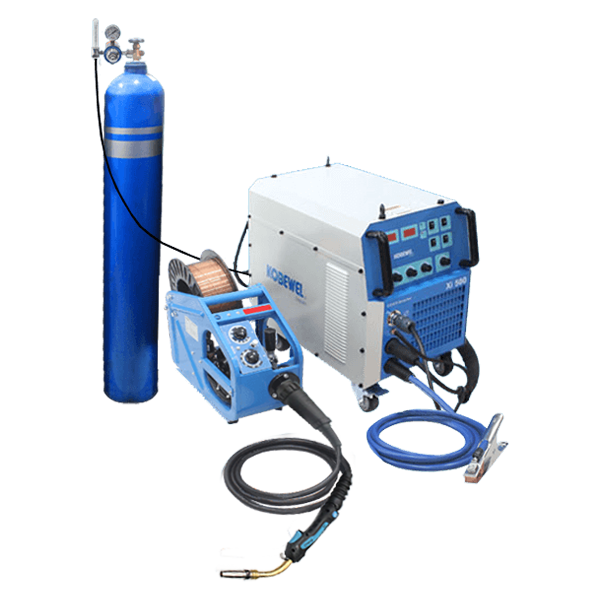

| Item Code | Item Name |
| 101.16.002.1 | Xi 500 - Mig Mag Inverter CC CV Wire Feeder Air Cooled Package |
| + Japanese Wire Feeder with Wire Straightener - 1 unit | |
| + Interpass Cable Size 70 mm2 at 5 m - 1 set | |
| + Plug to Ground Size 70 mm2 at 3 m - 1 set | |
| + Gas Hose 8 mm at 2 m - 1 set | |
| + Hose Clamp 10 mm - 3 pcs | |
| Standard Accessories | |
| 101.16.002 | Mig Mag Inverter CC CV Wire Feeder Xi 500 |
| 517.01.079 | Rubber Sleeve for Interpass Cable Dia 40 mm - Kobewel |
| Standard Alternative | |
| 250.02.003 | Mig Torch - Pro Mig 24 at 3 m |
| 250.02.004 | Mig Torch - Pro Mig 24 at 4 m |
| 250.02.005 | Mig Torch - Pro Mig 24 at 5 m |
| 250.02.006 | Mig Torch - Pro Mig 36 at 3 m |
| 250.02.007 | Mig Torch - Pro Mig 36 at 4 m |
| 250.02.008 | Mig Torch - Pro Mig 36 at 5 m |
| 201.23.003 | CO2 Heater 220V Gas Regulator |
| 201.23.004 | CO2 Fin Type Gas Regulator |
| 201.23.001 | Argon Gas Regulator |
| 201.23.002 | CO2 Gas Regulator |
| Optional Accessories | |
| 201.38.001 | Feed Roll for Xi 350 & 500 - 40 x 10 x 20 mm - Ø 0.8 / 1.0 mm ( V ) |
| 201.38.002 | Feed Roll for Xi 350 & 500 - 40 x 10 x 20 mm - Ø 1.0 / 1.2 mm ( V ) |
| 201.38.003 | Feed Roll for Xi 350 & 500 - 40 x 10 x 20 mm - Ø 1.2 / 1.6 mm ( V ) |
| 201.38.004 | Feed Roll for Xi 350 & 500 - 40 x 10 x 20 mm - Ø 0.8 / 1.0 mm ( U ) |
| 201.38.005 | Feed Roll for Xi 350 & 500 - 40 x 10 x 20 mm - Ø 1.0 / 1.2 mm ( U ) |
| 201.38.006 | Feed Roll for Xi 350 & 500 - 40 x 10 x 20 mm - Ø 1.2 / 1.6 mm ( U ) |
| 201.38.007 | Feed Roll for Xi 350 & 500 - 40 x 10 x 20 mm - Ø 1.2 / 1.6 mm ( Knurled ) |
| 201.38.008 | Feed Roll for Xi 350 & 500 - 40 x 10 x 20 mm - Ø 1.6 / 2.4 mm ( Knurled ) |
| 201.35.006 | Interpass Cable size 70 mm2 at 10 m Air Cooled - Xi 500 |
| 201.35.007 | Interpass Cable size 70 mm2 at 15 m Air Cooled - Xi 500 |
| 201.35.008 | Interpass Cable size 70 mm2 at 20 m Air Cooled - Xi 500 |
| General Accessories | |
| 201.22.009 | Welding Helmet - Solarmatic Blue |
| 201.22.010 | Welding Helmet - Solarmatic Red |
| 201.22.011 | Welding Helmet - Solarmatic Green |
| 208.18.002 | Torch Holder - MIG |

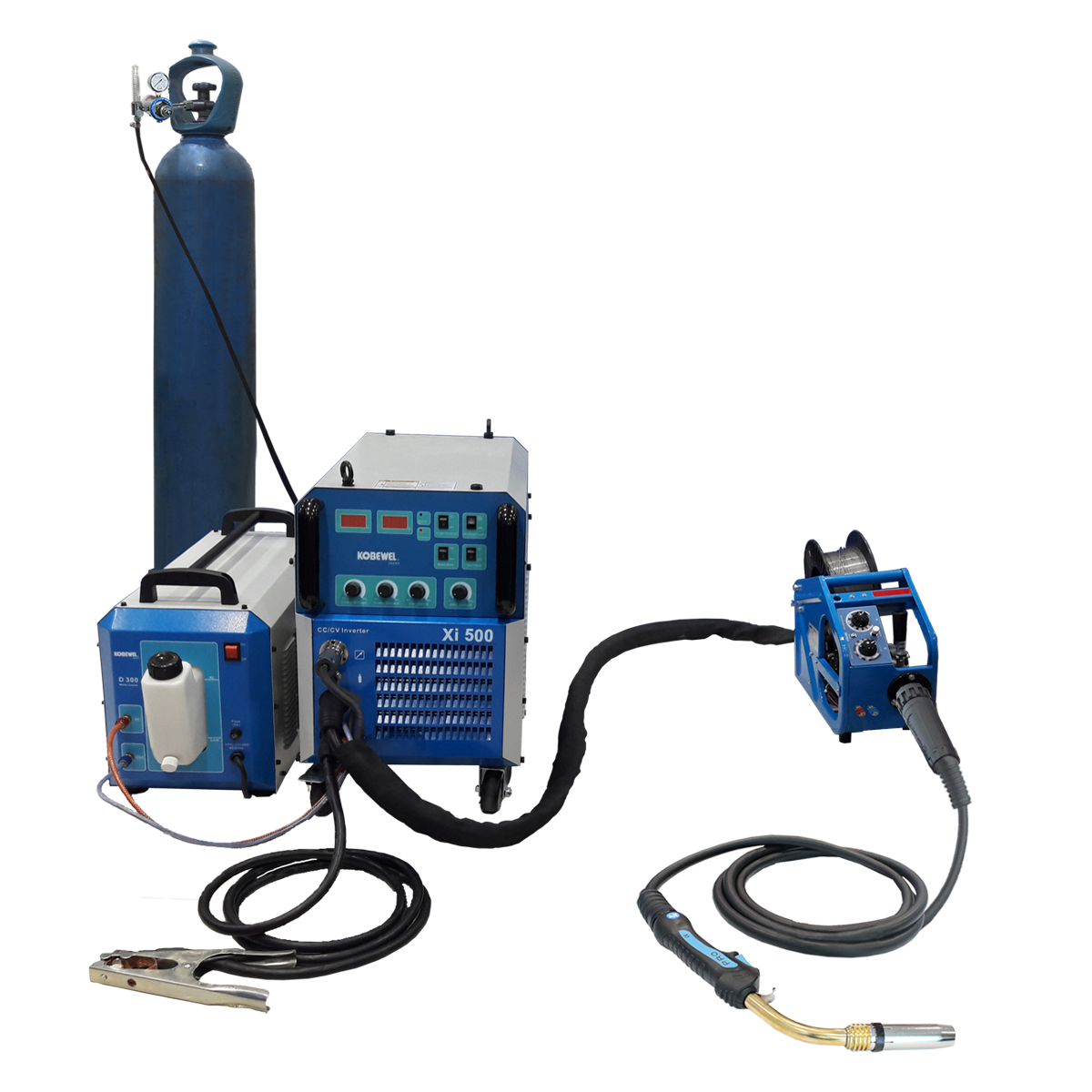

| Item Code | Item Name |
| 101.16.002.2 | Xi 500 - Mig Mag Inverter CC/CV Wire Feeder - Water Cooled Package |
| + Japanese Wire Feeder with Wire Straightener - 1 unit | |
| + Interpass Cable Size 70 mm2 at 5 m - 1 set | |
| + Plug to Ground Size 70 mm2 at 3 m - 1 set | |
| + Gas Hose 8 mm at 2 m - 1 set | |
| + Hose Clamp 10 mm - 3 pcs | |
| Standard Accessories | |
| 101.16.002 | Mig Mag Inverter CC CV Wire Feeder - Xi 500 |
| 517.01.079 | Rubber Sleeve for Interpass Cable Dia 40 mm - Kobewel |
| 101.12.003 | D 300 - Water Cooler Machine |
| 208.11.006 | Water Cooled Hose Package - Blue & Red at 6 m |
| 517.01.033 | Hose Clamp 1/2” |
| Standard Alternative | |
| 250.02.009 | Mig Torch - Pro Mig 500 at 3 m |
| 250.02.010 | Mig Torch - Pro Mig 500 at 4 m |
| 201.23.003 | CO2 Heater 220V Gas Regulator |
| 201.23.004 | CO2 Fin Type Gas Regulator |
| 201.23.001 | Argon Gas Regulator |
| 201.23.002 | CO2 Gas Regulator |
| Optional Accessories | |
| 201.37.001 | Feed Roll for Xi - V - Ø 1.0 / 1.2 mm |
| 201.37.002 | Feed Roll for Xi - V - Ø 0.8 / 1.0 mm |
| 201.37.003 | Feed Roll for Xi - V - Ø 1.2 / 1.6 mm |
| 201.37.004 | Feed Roll for Xi - Knurled - Ø 1.2 / 1.6 mm |
| 201.36.006 | Interpass Cable size 70 mm at 10 m Water Cooled - Xi 500 |
| 201.36.007 | Interpass Cable size 70 mm at 15 m Water Cooled - Xi 500 |
| 201.36.008 | Interpass Cable size 70 mm at 20 m Water Cooled - Xi 500 |
| General Accessories | |
| 201.22.009 | Welding Helmet - Solarmatic Blue |
| 201.22.010 | Welding Helmet - Solarmatic Red |
| 201.22.011 | Welding Helmet - Solarmatic Green |
| 208.18.002 | Torch Holder - MIG |

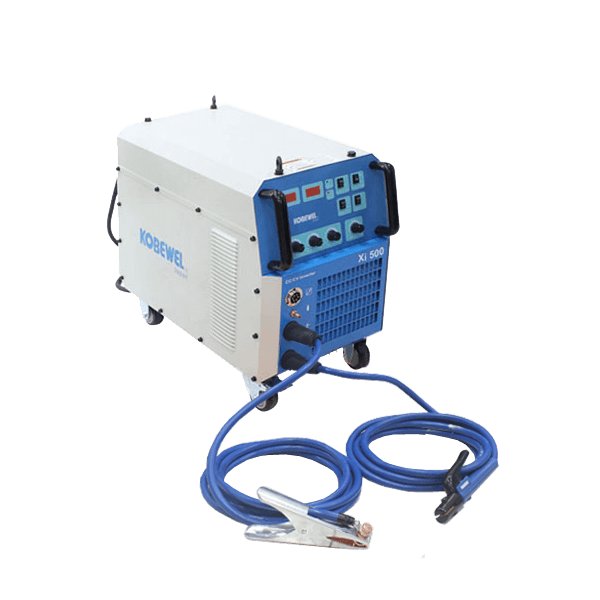

| Item Code | Item Name |
| 101.16.002.3 | Xi 500 - MMA Package |
| + Japanese Wire Feeder with Wire Straightener - 1 unit | |
| + Interpass Cable Size 70 mm2 at 5 m - 1 set | |
| + Plug to Ground Size 70 mm2 at 3 m - 1 set | |
| + Gas Hose 8 mm at 2 m - 1 set | |
| + Hose Clamp 10 mm - 3 pcs | |
| Standard Accessories | |
| 101.16.002 | Mig Mag Inverter CC CV Wire Feeder Xi 500 |
| 517.01.079 | Rubber Sleeve for Interpass Cable Dia 40 mm - Kobewel |
| Optional Accessories | |
| 208.04.004 | Plug to Ground Clamp 600 A, 70 mm2 at 5 m |
| 208.04.005 | Plug to Ground Clamp 600 A, 70 mm2 at 10 m |
| 208.04.006 | Plug to Ground Clamp 600 A, 70 mm2 at 15 m |
| 208.04.007 | Plug to Ground Clamp 600 A, 50 mm2 at 5 m |
| 208.04.008 | Plug to Ground Clamp 600 A, 50 mm2 at 10 m |
| 208.03.001 | Plug to Electrode Holder 400 A, 70 mm2 at 5 m |
| 208.03.002 | Plug to Electrode Holder 400 A, 70 mm2 at 10 m |
| 208.03.003 | Plug to Electrode Holder 400 A, 70 mm2 at 20 m |
| 208.03.005 | Plug to Electrode Holder 400 A, 50 mm2 at 5 m |
| 208.03.006 | Plug to Electrode Holder 400 A, 50 mm2 at 10 m |
| 208.03.007 | Plug to Electrode Holder 400 A, 50 mm2 at 20 m |
| 208.03.008 | Plug to Electrode Holder 400 A, 50 mm2 at 25 m |

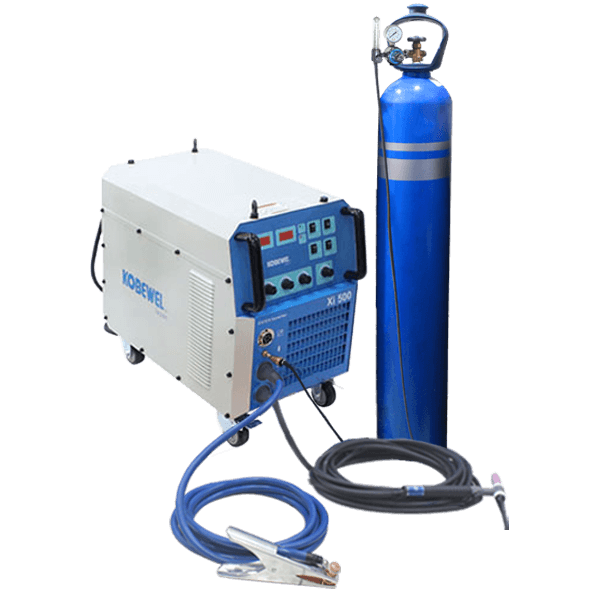

| Item Code | Item Name |
| 101.16.002.4 | Xi 500 - TIG Package |
| + Japanese Wire Feeder with Wire Straightener - 1 unit | |
| + Interpass Cable Size 70 mm2 at 5 m - 1 set | |
| + Plug to Ground Size 70 mm2 at 3 m - 1 set | |
| + Gas Hose 8 mm at 2 m - 1 set | |
| + Hose Clamp 10 mm - 3 pcs | |
| Standard Accessories | |
| 101.16.002 | Mig Mag Inverter CC CV Wire Feeder - Xi 500 |
| 203.34.004 | TIG Air Cooled Package with WP 26 V-25-2 at 8 m - 35-50 |
| 517.01.079 | Rubber Sleeve for Interpass Cable Dia 40 mm - Kobewel |
| General Accessories | |
| 201.22.009 | Welding Helmet - Solarmatic Blue |
| 201.22.010 | Welding Helmet - Solarmatic Red |
| 201.22.011 | Welding Helmet - Solarmatic Green |
| 208.18.001 | Torch Holder - TIG |
