Keunggulan Produk
1. Performa bagus TIG Torch dengan komponen berkualitas tinggi.
2. Handle dengan grip yang sangat baik & ball joint di ujung handle.
3. Kabel dengan fleksibilitas tinggi, cover pertama yang menggunakan kulit 50 cm, kemudian neoprene untuk fleksibilitas tinggi.
4. Memakai suku cadang yang sesuai dengan standar internasional.
5. Torch body menggunakan Karet Silikon, mengurangi kemungkinan kerusakan yang tidak disengaja saat digunakan atau hilangnya sinyal frekuensi tinggi karena kegagalan torch body.
| Spesifikasi | |
| Jenis Pendinginan | Udara |
| Aliran gas | 7 - 18 l/min |
| Duty Cycle 60 % DC | 200 A |
| Duty Cycle 60 % AC | 165 A |
| Elektroda tungsten Ø | 1.6 - 3.2 mm |
| Item Code | Item Name |
| 208.17.007 | Tig Torch - Air Cooled - WP 26 V-25-2 at 8 m |
| 208.17.013 | Tig Torch - Air Cooled - WP 26 V-25-2 at 8 m - Flexible |

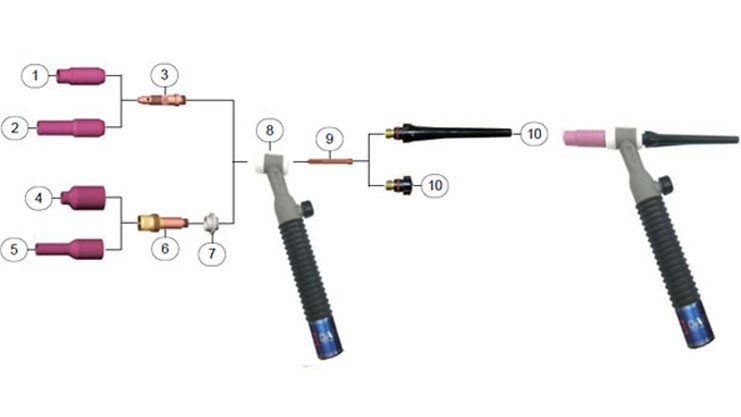

| Pos | Item Code | Item Name | MoQ |
| 1 | 203.17.001 | Alumina Nozzle Short No. 5 (10N49) - TIG 17 - 26 - 18 | 5 Pcs |
| 203.17.002 | Alumina Nozzle Short No. 6 (10N48) - TIG 17 - 26 - 18 | 5 Pcs | |
| 203.17.003 | Alumina Nozzle Short No. 7 (10N47) - TIG 17 - 26 - 18 | 5 Pcs | |
| 203.17.004 | Alumina Nozzle Short No. 8 (10N46) - TIG 17 - 26 - 18 | 5 Pcs | |
| 203.17.005 | Alumina Nozzle Short No. 10 (10N45) - TIG 17 - 26 - 18 | 5 Pcs | |
| 203.17.006 | Alumina Nozzle Short No. 12 (10N44) - TIG 17 - 26 - 18 | 5 Pcs | |
| 2 | 203.18.001 | Alumina Nozzle Long No. 5 (10N49L) - TIG 17 - 26 - 18 | 5 Pcs |
| 203.18.002 | Alumina Nozzle Long No. 6 (10N48L) - TIG 17 - 26 - 18 | 5 Pcs | |
| 203.18.003 | Alumina Nozzle Long No. 7 (10N47L) - TIG 17 - 26 - 18 | 5 Pcs | |
| 3 | 203.22.001 | Collet Body Ø 1.6 mm (10N31) - TIG 17 - 26 - 18 | 2 Pcs |
| 203.22.002 | Collet Body Ø 2.4 mm (10N32) - TIG 17 - 26 - 18 | 2 Pcs | |
| 203.22.003 | Collet Body Ø 3.2 mm ( 10N28 ) - TIG 17 - 26 - 18 | 2 Pcs | |
| 203.22.004 | Collet Body Ø 4.0 mm ( 406488 ) - TIG 17 - 26 - 18 | 2 Pcs | |
| 4 | 203.19.001 | Alumina Nozzle Short Gas Lens No. 4 (54N18) - TIG 17 - 26 - 18 | 5 Pcs |
| 203.19.002 | Alumina Nozzle Short Gas Lens No. 5 (54N17) - TIG 17 - 26 - 18 | 5 Pcs | |
| 203.19.003 | Alumina Nozzle Short Gas Lens No. 6 (54N16) - TIG 17 - 26 - 18 | 5 Pcs | |
| 203.19.004 | Alumina Nozzle Short Gas Lens No. 7 (54N15) - TIG 17 - 26 - 18 | 5 Pcs | |
| 203.19.005 | Alumina Nozzle Short Gas Lens No. 8 (54N14) - TIG 17 - 26 - 18 | 5 Pcs | |
| 203.19.006 | Alumina Nozzle Short Gas Lens No. 12 (54N19) - TIG 17 - 26 - 18 | 5 Pcs |
| Pos | Item Code | Item Name | MoQ |
| 5 | 203.20.001 | Alumina Nozzle Long Gas Lens No. 5 (54N17L) - TIG 17 - 26 - 18 | 5 Pcs |
| 203.20.002 | Alumina Nozzle Long Gas Lens No. 6 (54N16L) - TIG 17 - 26 - 18 | 5 Pcs | |
| 203.20.003 | Alumina Nozzle Long Gas Lens No. 7 (54N15L) - TIG 17 - 26 - 18 | 5 Pcs | |
| 6 | 203.23.001 | Collet Body Gas Lens Ø 1.6 mm (45V25) - TIG 17 - 26 - 18 | 2 Pcs |
| 203.23.002 | Collet Body Gas Lens Ø 2.4 mm (45V26) - TIG 17 - 26 - 18 | 2 Pcs | |
| 203.23.003 | Collet Body Gas Lens Ø 3.2 mm (45V27) - TIG 17 - 26 - 18 | 2 Pcs | |
| 203.23.004 | Collet Body Gas Lens Ø 4.0 mm (45V28) - TIG 17 - 26 - 18 | 2 Pcs | |
| 7 | 203.23.005 | Collet Body Gas Lens Insulator (54N01) - TIG 17 - 26 - 18 | 2 Pcs |
| 8 | 203.32.005 | Torch Head WP 26 V | 1 Pc |
| 203.32.006 | Torch Head Flexible WP 26 FV | 1 Pc | |
| 9 | 203.21.001 | Collet Ø 1.6 mm (10N23) - TIG 17 - 26 - 18 | 5 Pcs |
| 203.21.002 | Collet Ø 2.4 mm (10N24) - TIG 17 - 26 - 18 | 5 Pcs | |
| 203.21.003 | Collet Ø 3.2 mm (10N25) - TIG 17 - 26 - 18 | 5 Pcs | |
| 203.21.004 | Collet Ø 4.0 mm (54N20) - TIG 17 - 26 - 18 | 5 Pcs | |
| 10 | 203.24.001 | Back Cap Long (57Y02) - TIG 17 - 26 - 18 | 2 Pcs |
| 203.24.002 | Back Cap Short (57Y04) - TIG 17 - 26 - 18 | 2 Pcs |
