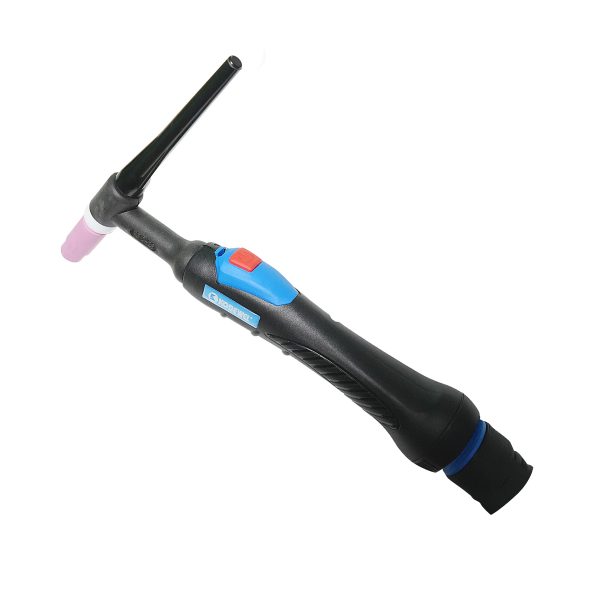

Stang Las TIG – Air Cooled Pro Tig 17

Katalog (206 KB)



Kita juga hadir di :

Bagikan ke :

Keunggulan Produk

1. Performa bagus TIG Torch dengan komponen berkualitas tinggi.

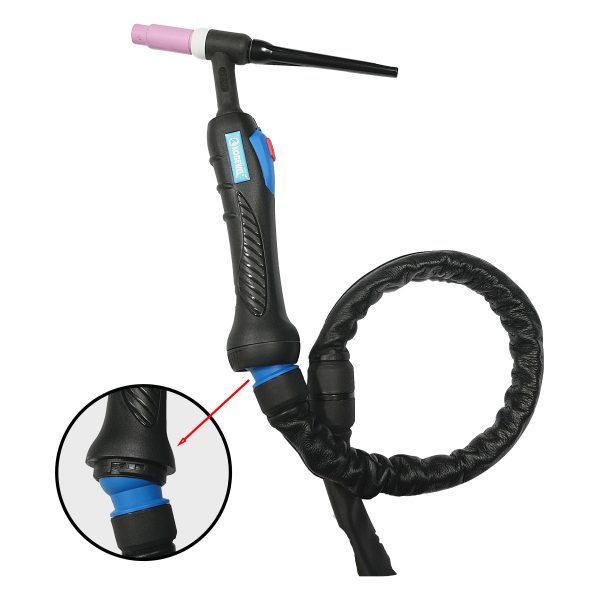

2. Handle dengan grip yang sangat baik & ball joint di ujung handle.

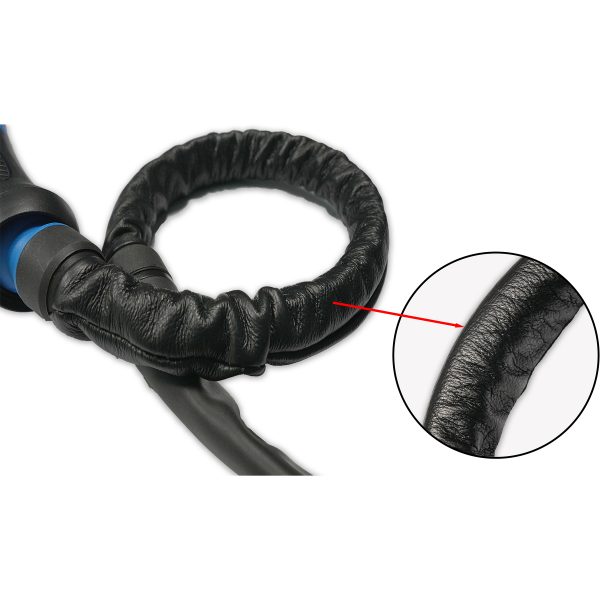

3. Kabel dengan fleksibilitas tinggi, cover pertama yang menggunakan kulit 50 cm, kemudian neoprene untuk fleksibilitas tinggi.
4. Memakai suku cadang yang sesuai dengan standar internasional.
5. Torch body menggunakan Karet Silikon, mengurangi kemungkinan kerusakan yang tidak disengaja saat digunakan atau hilangnya sinyal frekuensi tinggi karena kegagalan torch body.

Spesifikasi
Jenis Pendinginan:Udara
Aliran gas:7 - 15 l/min
Duty Cycle 35 % DC:150 A
Duty Cycle 35 % AC:125 A
Elektroda tungsten Ø:1.6 - 3.2 mm
Item CodeItem Name
250.17.001TIG Torch - Air Cooled - Pro Tig 17 at 4 m

Pos Image Item Code Item Name MoQ

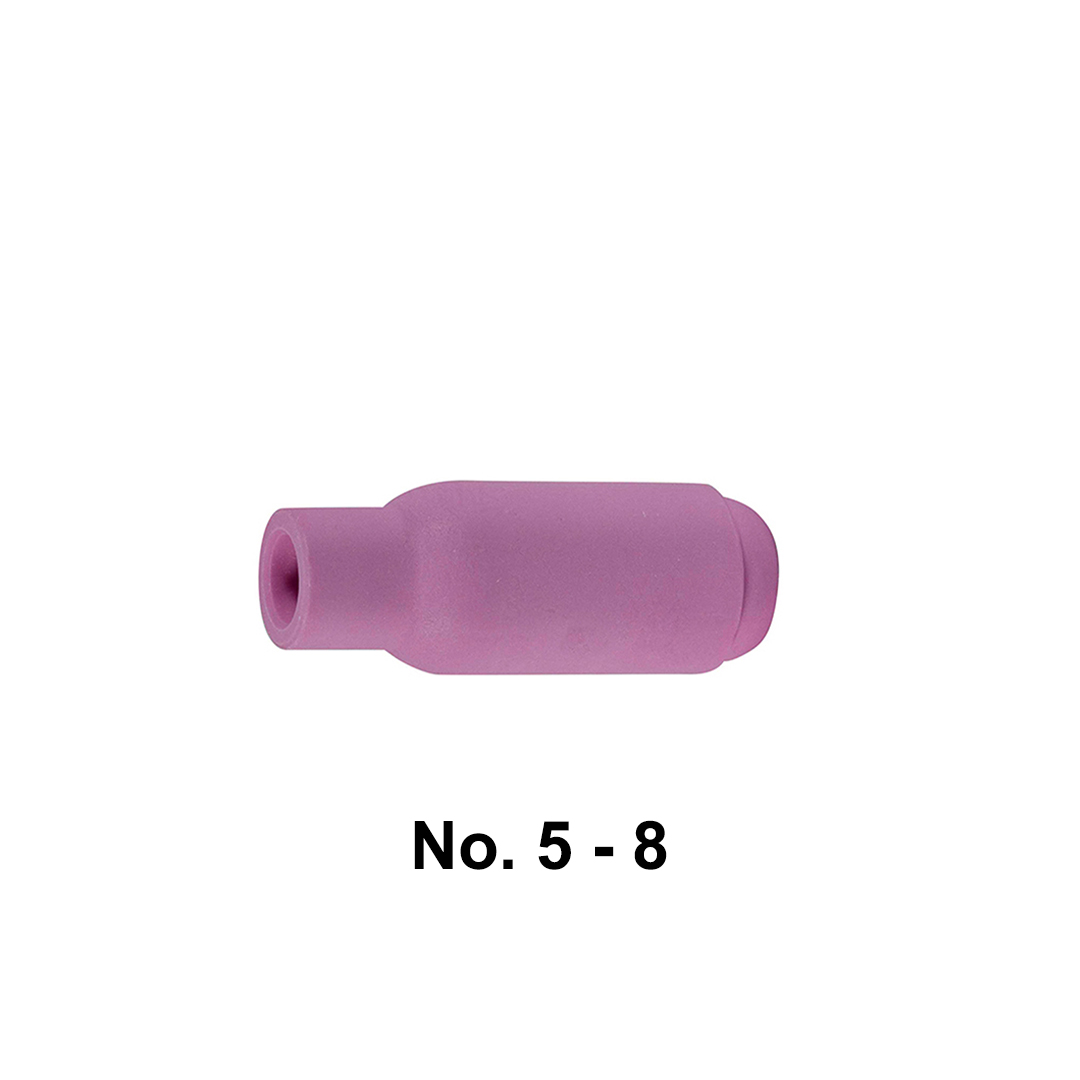

​​1​ 250.18.001.1 Alumina Nozzle Short – No. 5 (10N49) – Pro Tig 17 – 26 – 18 – 10 Pcs 1 Pack
250.18.002.1 Alumina Nozzle Short – No. 6 (10N48) – Pro Tig 17 – 26 – 18 – 10 Pcs 1 Pack
250.18.003.1 Alumina Nozzle Short – No. 7 (10N47) – Pro Tig 17 – 26 – 18 – 10 Pcs 1 Pack
250.18.004.1 Alumina Nozzle Short – No. 8 (10N46) – Pro Tig 17 – 26 – 18 – 10 Pcs 1 Pack
​​​​​​​ ​ ​ ​

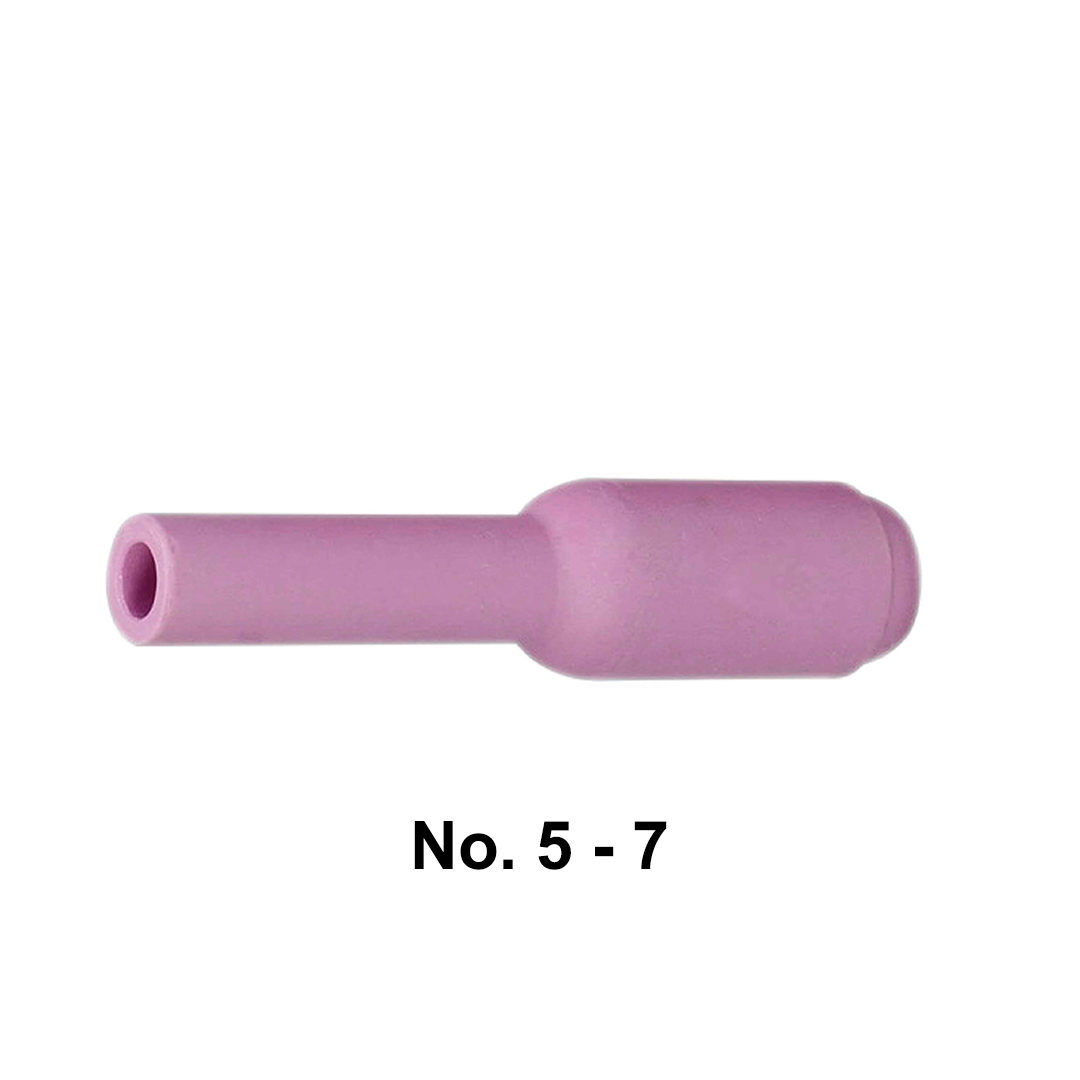

​2 250.19.001.1 Alumina Nozzle Long – No. 5 (10N49L) – Pro Tig 17 – 26 – 18 – 10 Pcs 1 Pack
250.19.002.1 Alumina Nozzle Long – No. 6 (10N48L) – Pro Tig 17 – 26 – 18 – 10 Pcs 1 Pack
250.19.003.1 Alumina Nozzle Long – No. 7 (10N47L) – Pro Tig 17 – 26 – 18 – 10 Pcs 1 Pack
​​​​​​ ​ ​ ​

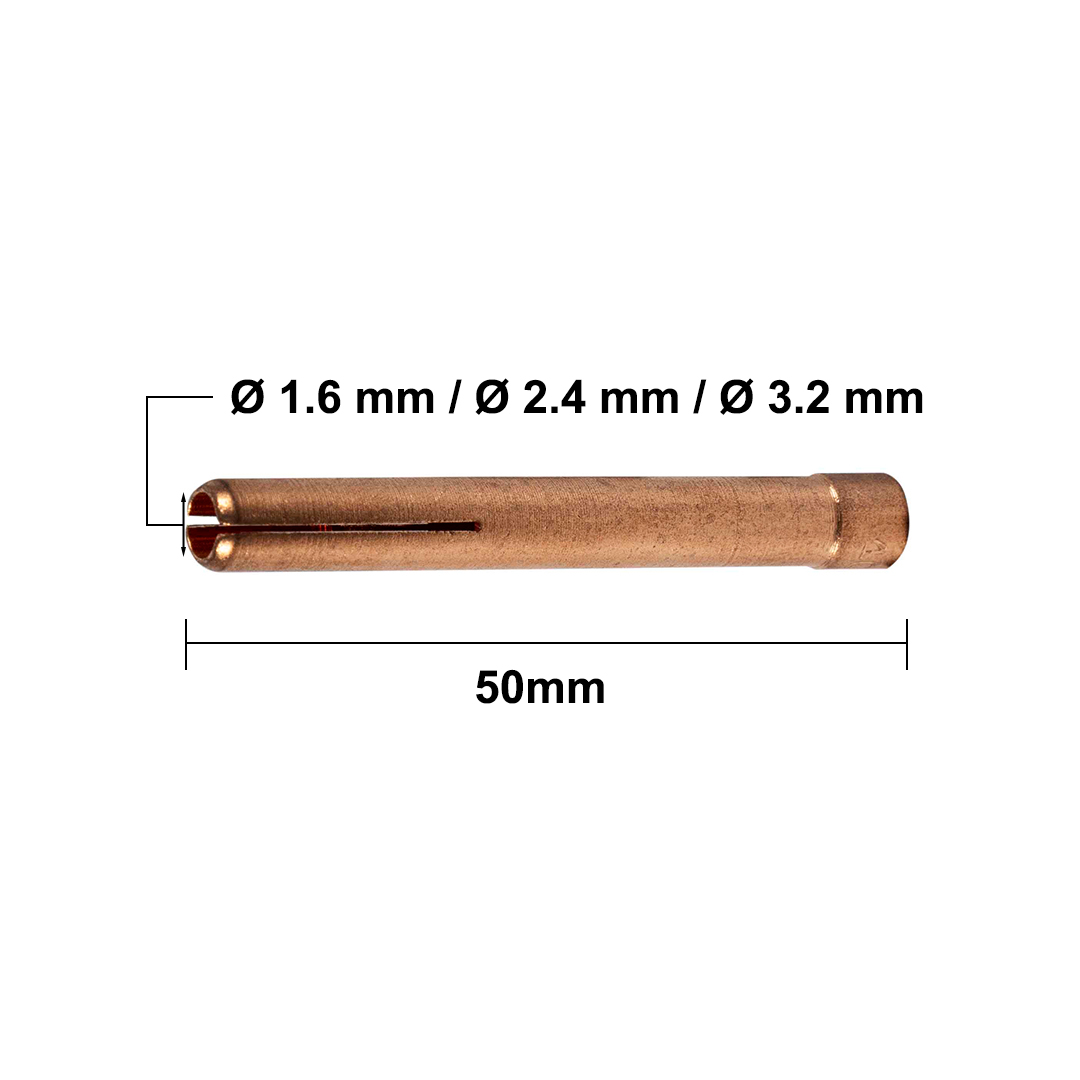

​3 250.22.001.1 Collet Ø 1.6 mm (10N23) – Pro Tig 17 – 26 – 18 – 5 Pcs 1 Pack
250.22.002.1 Collet Ø 2.4 mm (10N24) – Pro Tig 17 – 26 – 18 – 5 Pcs 1 Pack
250.22.003.1 Collet Ø 3.2 mm (10N25) – Pro Tig 17 – 26 – 18 – 5 Pcs 1 Pack
​ ​

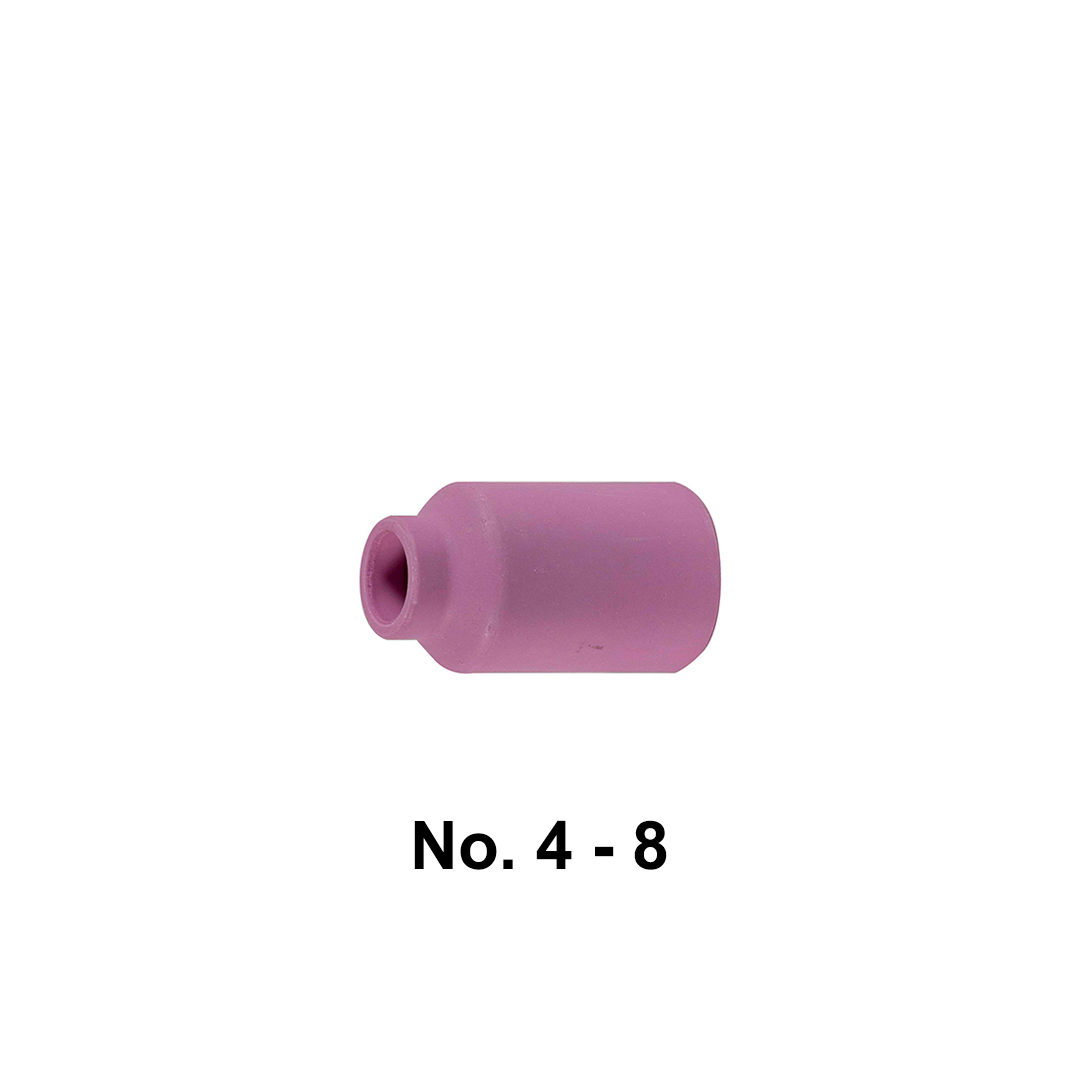

​​​4 250.20.001.1 Alumina N​ozzle Short Gas Lens – No. 4 (54N18) – Pro Tig 17 – 26 – 18 – 10 Pcs 1 Pack
250.20.002.1 Alumina Nozzle Short Gas Lens – No. 5 (54N17) – Pro Tig 17 – 26 – 18 – 10 Pcs 1 Pack
250.20.003.1 Alumina Nozzle Short Gas Lens – No. 6 (54N16) – Pro Tig 17 – 26 – 18 – 10 Pcs 1 Pack
250.20.004.1 Alumina Nozzle Short Gas Lens – No. 7 (54N15) – Pro Tig 17 – 26 – 18 – 10 Pcs 1 Pack
250.20.005.1 Alumina Nozzle Short Gas Lens – No. 8 (54N14) – Pro Tig 17 – 26 – 18 – 10 Pcs 1 Pack
​ ​

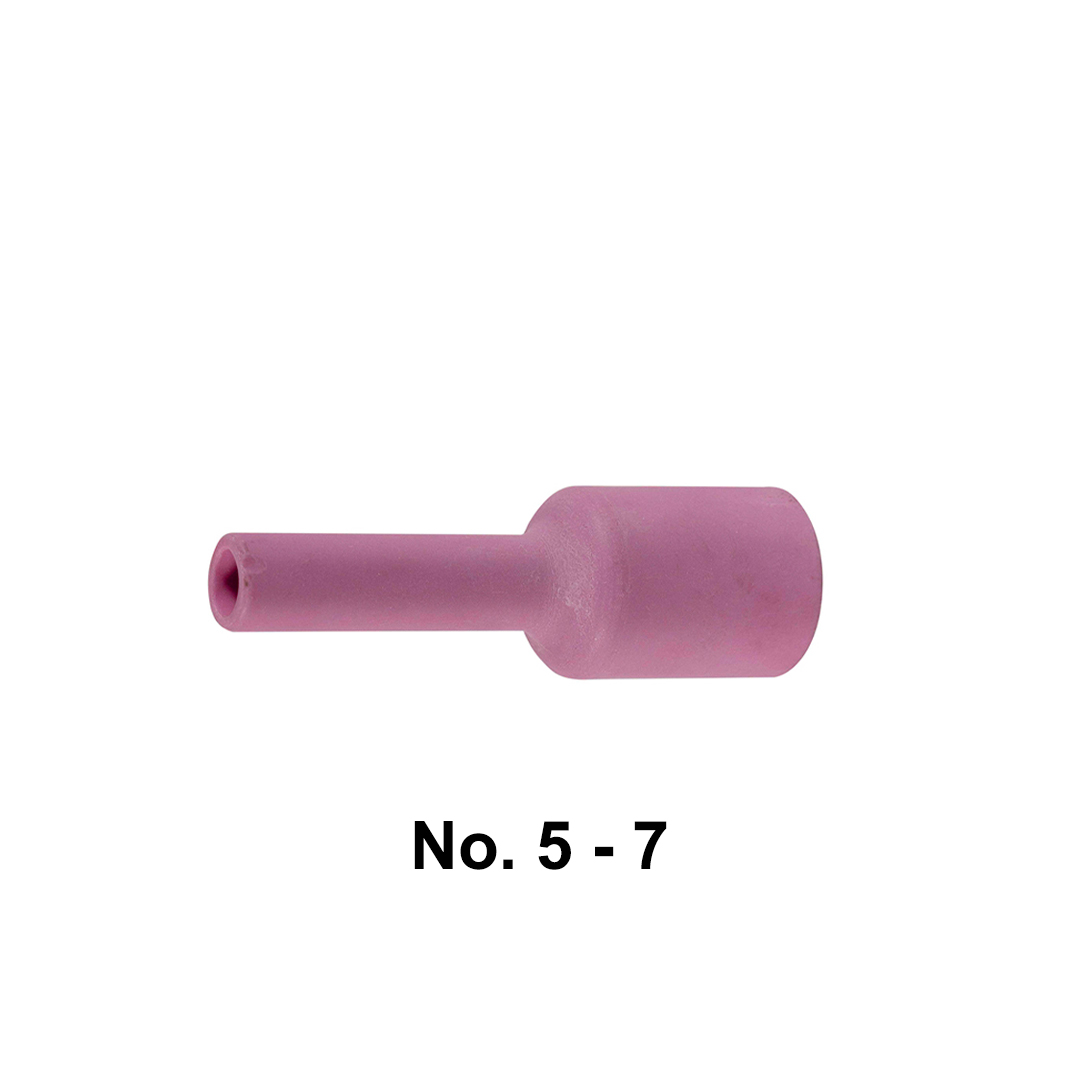

​5 ​​ 250.21.001.1 Alumina Nozzle Long Gas Lens – No. 5 (54N17L) – Pro Tig 17 – 26 – 18 – 10 Pcs 1 Pack
250.21.002.1 Alumina Nozzle Long Gas Lens – No. 6 (54N16L) – Pro Tig 17 – 26 – 18 – 10 Pcs 1 Pack
250.21.003.1 Alumina Nozzle Long Gas Lens – No. 7 (54N15L) – Pro Tig 17 – 26 – 18 – 10 Pcs 1 Pack

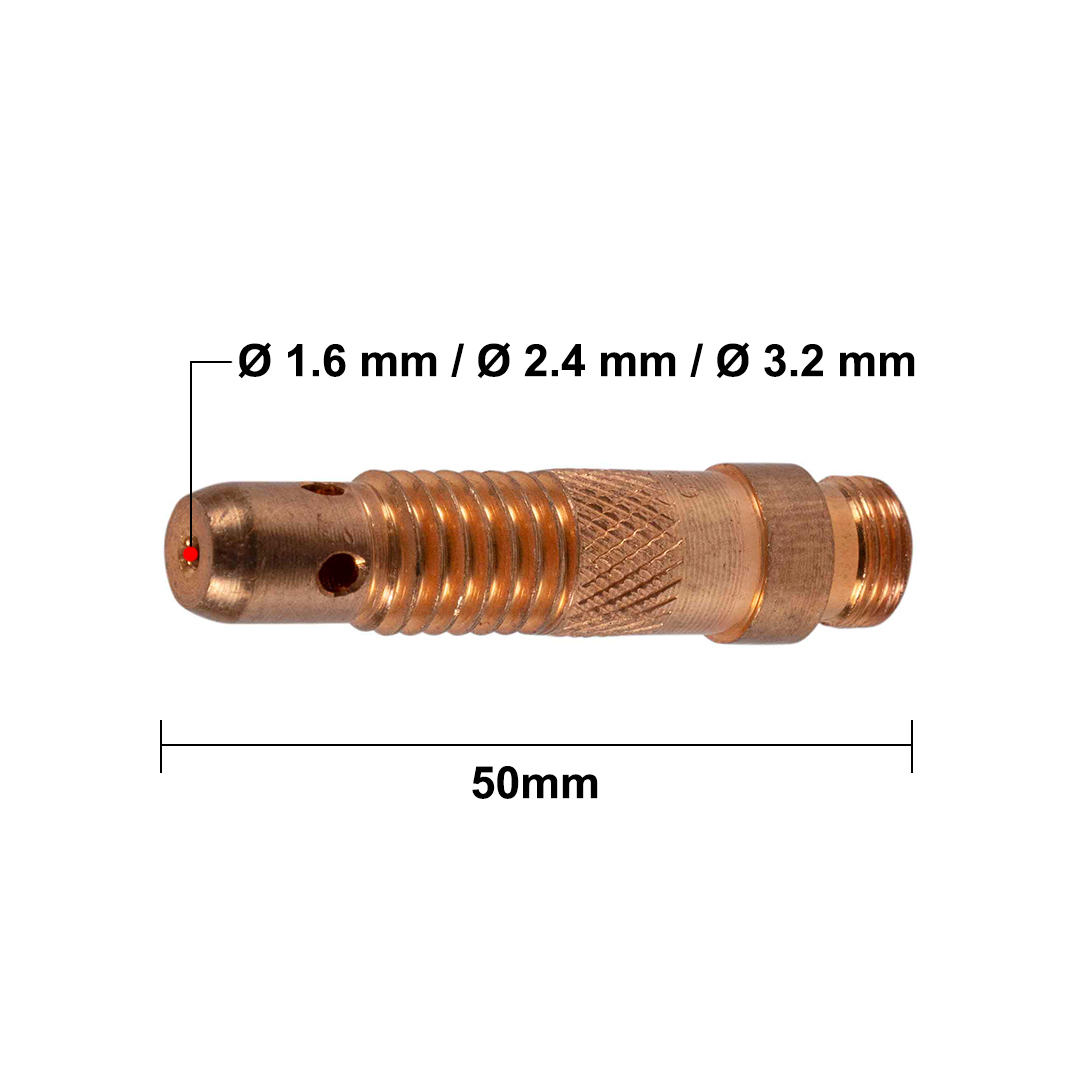

​6​ 250.24.001.1 Collet Body Gas Lens Ø 1.6 mm (45V25) – Pro Tig 17 – 26 – 18 – 5 Pcs 10 Pcs
250.24.002.1 Collet Body Gas Lens Ø 2.4 mm (45V26) – Pro Tig 17 – 26 – 18 – 5 Pcs 10 Pcs
250.24.003.1 Collet Body Gas Lens Ø 3.2 mm (45V27) – Pro Tig 17 – 26 – 18 – 5 Pcs 10 Pcs

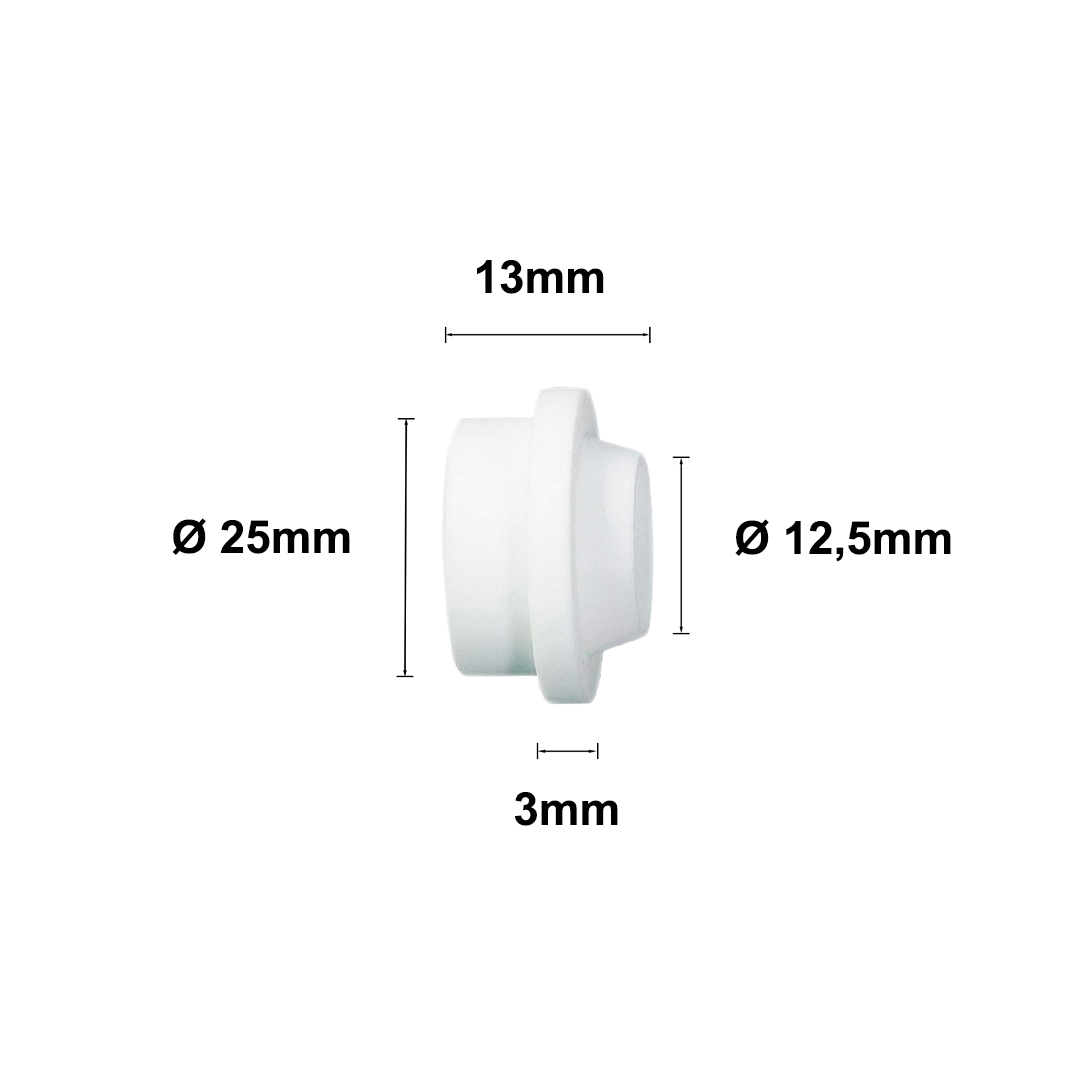

7 250.24.005.1 Collet Body Gas Lens Insulator (54N01) – Pro Tig 17 – 26 – 18 – 5 Pcs 3 Pcs
​​​​
8 250.33.001.1 Torch Body – ProTIG 17 3 Pcs
​9 ​​ 250.22.001.1 Collet Ø 1.6 mm (10N23) – Pro Tig 17 – 26 – 18 – 5 Pcs 3 Pcs
250.22.002.1 Collet Ø 2.4 mm (10N24) – Pro Tig 17 – 26 – 18 – 5 Pcs 1 Pc
250.22.003.1 Collet Ø 3.2 mm (10N25) – Pro Tig 17 – 26 – 18 – 5 Pcs 1 Pc
​​​

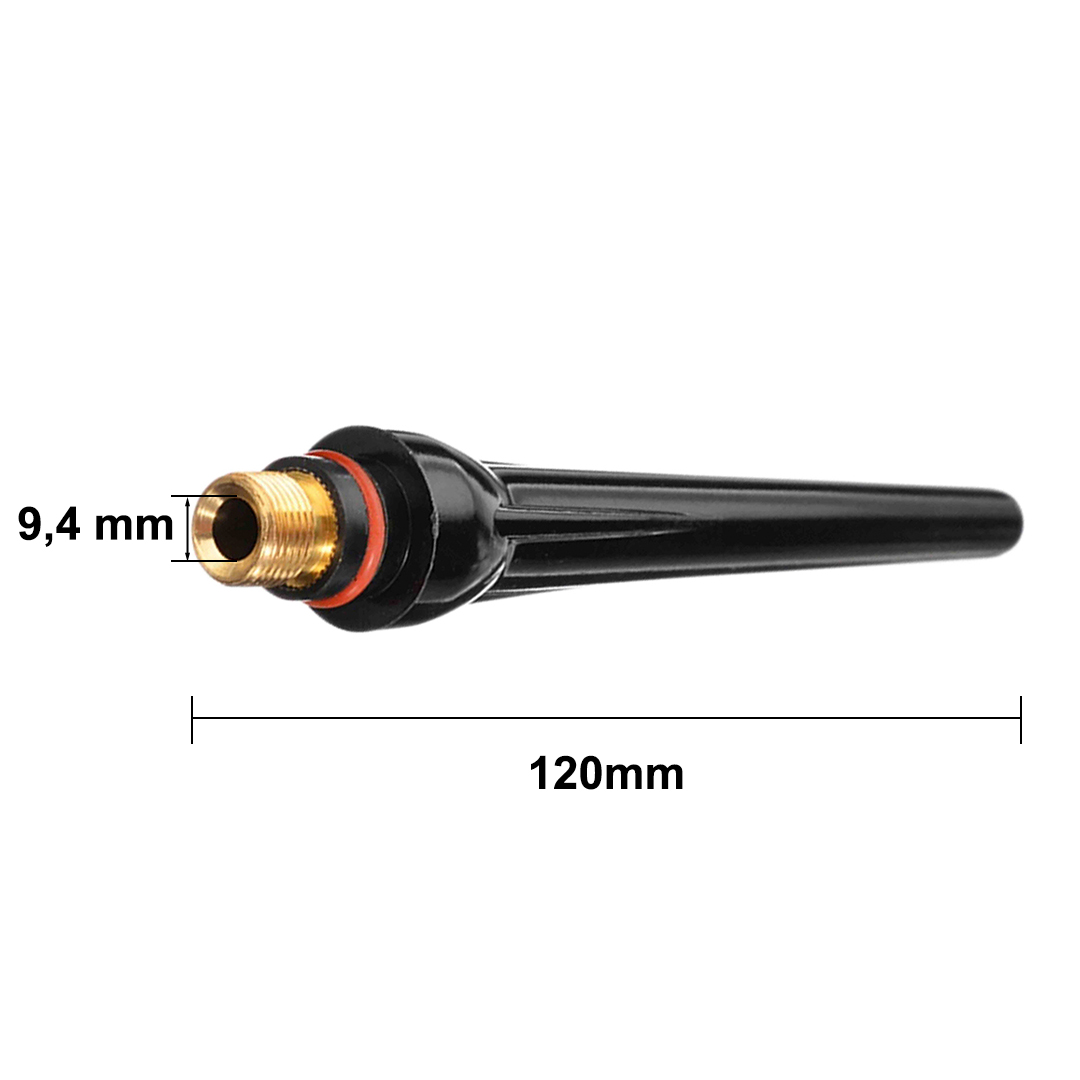

​10 250.25.001.1 Back Cap Long (57Y02) – Pro Tig 17 – 26 – 18 – 5 Pcs 5 Pcs

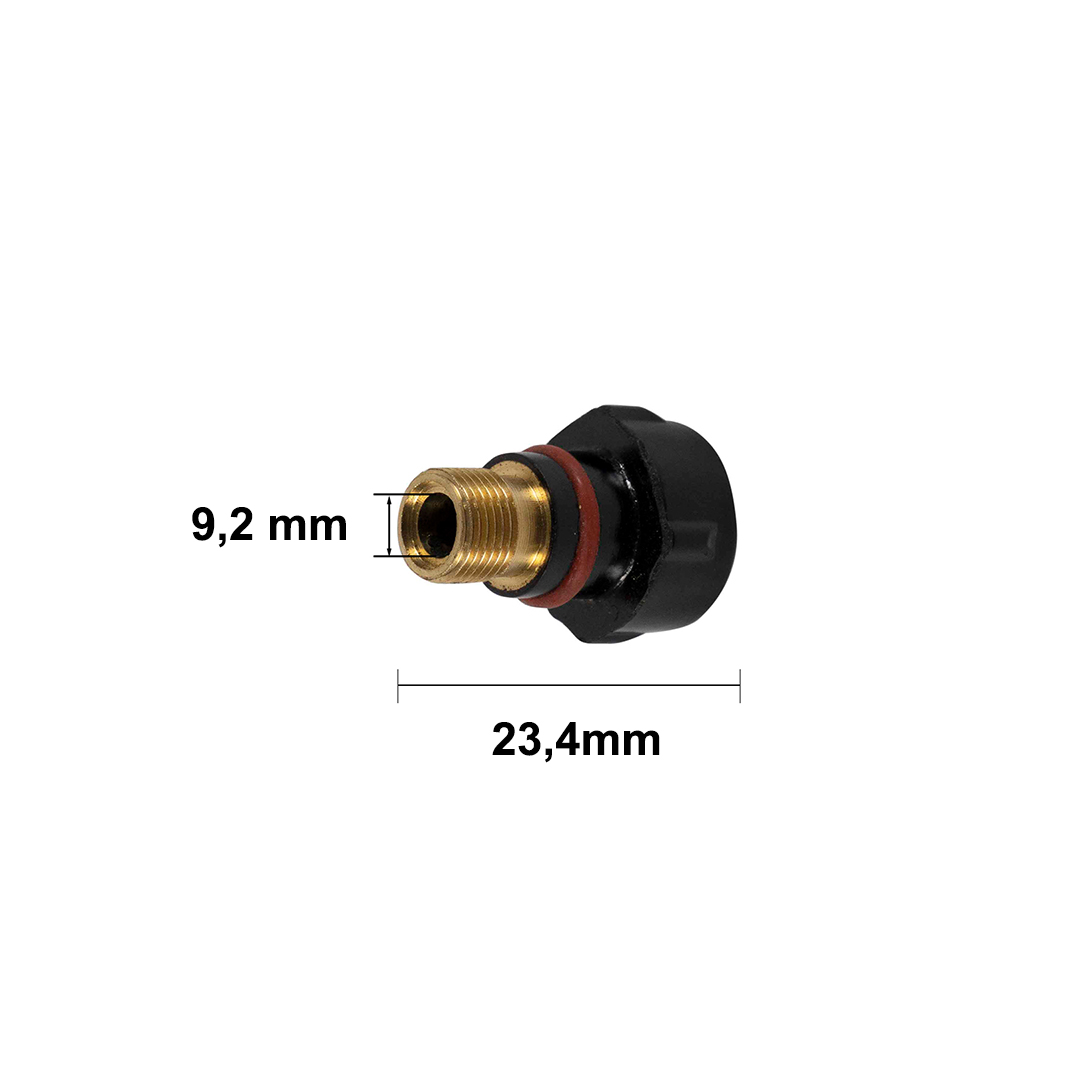

250.25.002.1 Back Cap Short (57Y04) – Pro Tig 17 – 26 – 18 – 5 Pcs 5 Pcs
