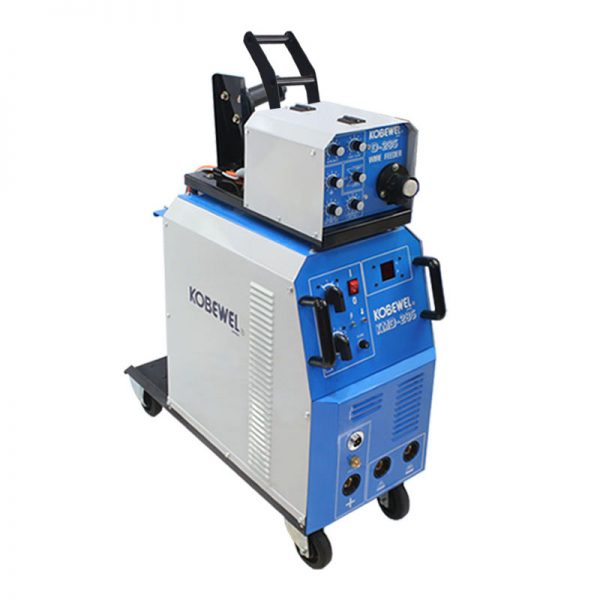

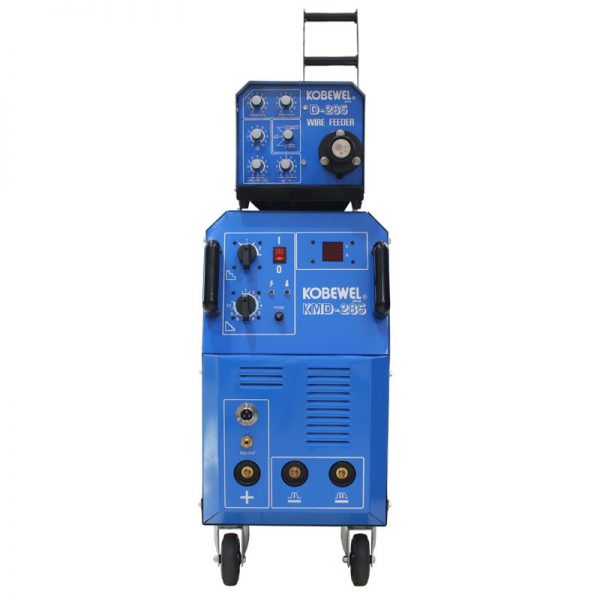

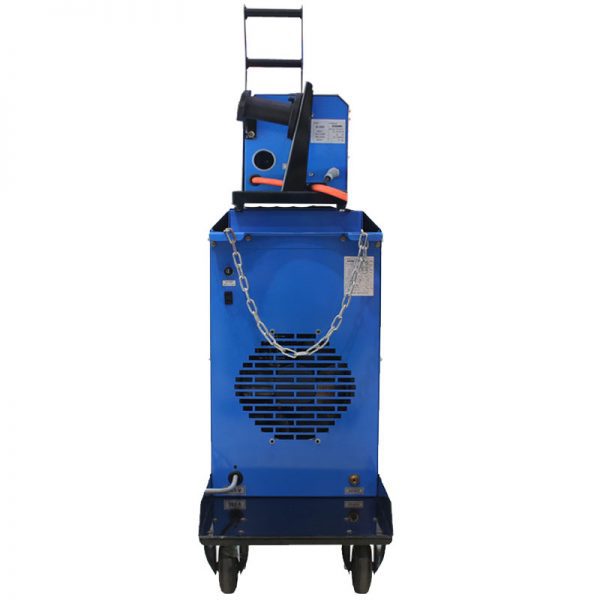

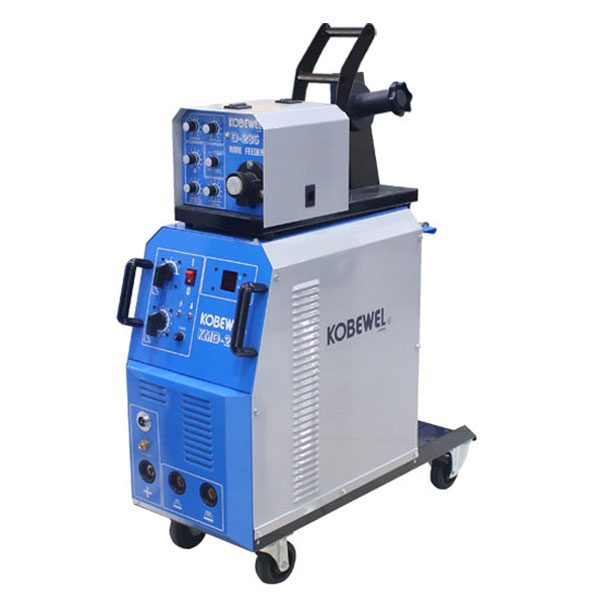

Mesin Las CO Mig Mag Step Switch Wire Feeder KMD 285

Unduh Katalog (235 KB)

Bagikan ke :

Penggunaan Utama

● Penggunaan Utama
● Lembaran logam baja
● Konstruksi dan galangan kapal
● Pengelasan pipa minyak dan gas
● Pengelasan di tempat

Keunggulan

● Mesin Mig Mag dengan desain baru dari Jepang berupa Wire Feeder Terpisah untuk industry ringan hingga berat, menyajikan hasil pengelasan yang sangat andal dan mutu sempurna.
● Teknologi rectifier Jepang yang terbaru untuk menghasilkan karakteristik pengelasan yang sangat baik untuk pengelasan Mig Mag CO2 dan gas campuran.
● Transformator choke yang andal di produksi secara optimal guna pengelasan yang lebih baik dan percikan api yang lebih sedikit.
● Pengelasan interval :dengan pengelasan dan waktu interval.
● Penyesuaian Post gas dan burn back.
● Uji gas dan pemasangan kawat.
● Penyesuaian voltase halus dan kasar.
● Sistem wire feeder yang kokoh, dengan dua feed roll bergigi, drive roll yang mudah diubah dan bisa dibalik serta mudah diatur.
● Inclined wire spool hub untuk transfer kawat dengan mulus dan hasil pengelasan yang lebih baik.
● Komponen internal dilindungi dari kerusakan dengan perlindungan terhadap panas akibat beban berlebih yang secara otomatis mematikan unit.
● Spot welding dengan spot time.
● Silinder gas yang mudah diisi dengan platform yang rendah.
● Kipas mesin yang kuat untuk sistem pendinginan maksimum.

Spesifikasi

Rentang pengelasan	20 - 285 A
Tegangan beban	15 - 28.2 V
Tegangan sirkuit terbuka	36 V
Pengaturan tegangan	2 x 10
Welding current at 40 % duty cycle	280 A
Welding current at 60 % duty cycle	-
Welding current at 100 % duty cycle	180 A
Weldable Steel wire	0.8 - 1.2 mm
Weldable Aluminum wire	0.9 - 1.2 mm
Wire feed rate	1 - 17 m/min
Input phase	3 Phase
Tegangan utama	380 V
Frekuensi	50 / 60 Hz
Main fuse ( slow - blow )	16 A
Max. konsumsi daya380 V	10.5 KVA
Power factor	0.96
Index protection	IP 21
Insulation class	H
Jenis pendingin	F
Emisi kebisingan	< 75 dB ( A )
Dimensi mesin (P x L x T)	843 x 355 x 725 mm
Berat mesin	85 Kg
Dimensi wire feeder (P x L x T)	540 x 242 x 448 mm
Berat wire feeder	13 Kg

Bumi Teknik Utama kobewel Mesin Las CO2 00031f

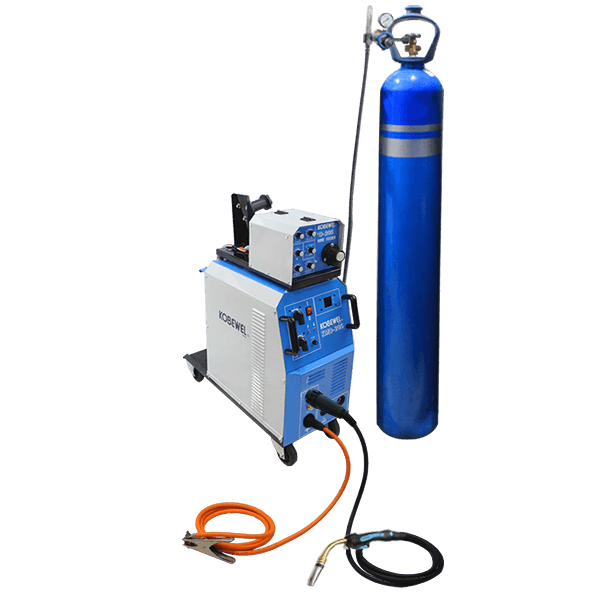

Mig Mag Air Cooled Package

Item Code	Item Name
101.05.001.1	KMD 285 - Mig Mag Air Cooled Package
	+ Wire feeder D 285 - 1 unit
	+ feedroll for steel Ø 0.8/1.0 mm
	+ interpass cable size 35 mm at 3 m air cooled - KMD 285 w/o Gas hose - 1 set
	+ gas nipple size ¼ "

Standard Accessories
101.05.001	Mig Mag Step Switch - KMD 285
201.11.004	Plug to Ground Clamp 300 A 35 mm2 at 3 m, KM 285 & KMD 285
208.12.001	Regulator Gas Hose - Blue at 1.5 m
208.12.002	Interpass Gas Hose - Blue at 3 m

Standard Alternative
201.23.002	CO2 Gas Regulator
201.23.003	CO2 Heater 220V Gas Regulator
201.23.004	CO2 Fin Type Gas Regulator
250.02.003	Mig Torch - Pro Mig 24 at 3 m
250.02.004	Mig Torch - Pro Mig 24 at 4 m
250.02.005	Mig Torch - Pro Mig 24 at 5 m
250.02.001	Mig Torch - Pro Mig 15 at 3 m
250.02.002	Mig Torch - Pro Mig 15 at 4 m
201.03.001	Feed Roll KM & KMD Ø 35 mm Steel Ø 0.6 & 0.9 mm
201.03.002	Feed Roll KM & KMD Ø 35 mm Steel Ø 0.8 & 1.0 mm
201.03.003	Feed Roll KM & KMD Ø 35 mm Steel Ø 1.2 & 1.6 mm
201.03.007	Feed Roll KM & KMD Ø 35 mm Flux Cored Ø 1.2 & 1.6 mm

Optional Accessories
201.05.007	Interpass Cable size 50 mm at 10 m Air Cooled - KMD 285
201.05.008	Interpass Cable size 50 mm at 15 m Air Cooled - KMD 285

General Accessories
201.22.009	Welding Helmet - Solarmatic Blue
201.22.010	Welding Helmet - Solarmatic Red
201.22.011	Welding Helmet - Solarmatic Green
208.18.002	Torch Holder - MIG

Mig Mag Air Cooled Package for Alu

Item Code	Item Name
101.05.001.2	KMD 285 - Mig Mag Air Cooled Package for Alu
	+ Wire feeder D 285 - 1 unit
	+ feedroll for steel Ø 0.8/1.0 mm
	+ interpass cable size 35 mm at 3 m - air cooled - KMD 285 w/o Gas hose - 1 set
	+ gas nipple size ¼ "

Standard Accessories
101.05.001	Mig Mag Step Switch - KMD 285
201.11.004	Plug to Ground Clamp 300 A, 35 mm2 at 3 m - KM 285 & KMD 285
201.23.001	Argon Gas Regulator
208.12.001	Regulator Gas Hose - Blue at 1.5 m
208.12.002	Interpass Gas Hose - Blue at 3 m

Standard Alternative
250.02.006	Mig Torch - Pro Mig 36 at 3 m
250.02.007	Mig Torch - Pro Mig 36 at 4 m
250.02.008	Mig Torch - Pro Mig 36 at 5 m
250.02.001	Mig Torch - Pro Mig 15 at 3 m
250.02.002	Mig Torch - Pro Mig 15 at 4 m
203.12.007	Red Teflon Liner 5m + Copper Liner Aluminum Ø 1.0 - 1.2 mm
203.12.006	Blue Teflon Liner 5 m + Copper Liner Aluminum Ø0.8 - 0.9 mm
203.12.009	Blue Teflon Liner 4 m + Copper Liner Aluminum Ø0.8 - 0.9 mm
203.12.010	Red Teflon Liner 4 m + Copper Liner Aluminum Ø1.0 - 1.2 mm
203.12.012	Blue Teflon Liner 3 m + Copper Liner Aluminum Ø0.8 - 0.9 mm
203.12.013	Blue Teflon Liner 3 m + Copper Liner Aluminum Ø1.0 - 1.2 mm
201.03.005	Feed Roll KM & KMD Ø 35 mm Aluminum Ø 0.8 & 1.0 mm
201.03.004	Feed Roll KM & KMD Ø 35 mm Aluminum Ø 0.6 & 0.9 mm

Optional Accessories
201.05.007	Interpass Cable size 50 mm at 10 m - Air Cooled - KMD 285
201.05.008	Interpass Cable size 50 mm at 15 m - Air Cooled - KMD 285

General Accessories
201.22.009	Welding Helmet - Solarmatic Blue
201.22.010	Welding Helmet - Solarmatic Red
201.22.011	Welding Helmet - Solarmatic Green
208.18.002	Torch Holder - MIG

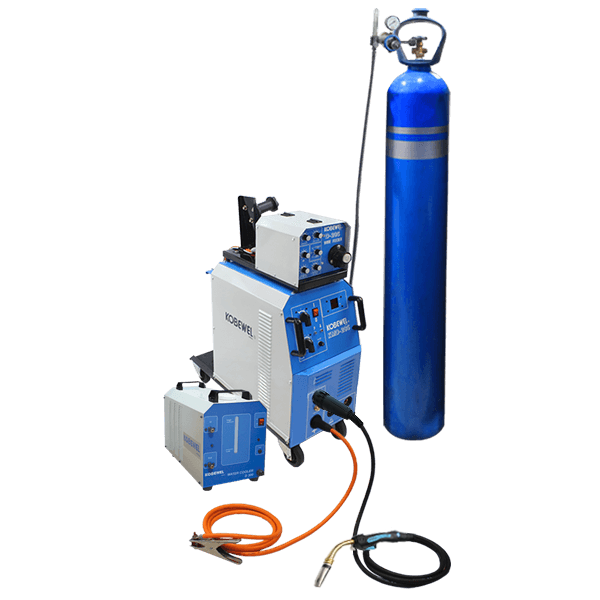

Mig Mag Water Cooled Package

Item Code	Item Name
101.05.001.3	KMD 285 - Mig Mag Water Cooled Package
	+ Wire feeder D 285 - 1 unit
	+ feedroll for steel Ø 0.8/1.0 mm
	+ interpass cable size 35 mm at 3 m - air cooled - KMD 285 w/o Gas hose - 1 set
	+ gas nipple size ¼ "

Standard Accessories
203.05.001	Mig Torch - Ergoplus 500 at 3 m long
203.05.002	Mig Torch - Ergoplus 500 at 4 m long
201.23.002	CO2 Gas Regulator
201.23.003	CO2 Heater 220V Gas Regulator
201.23.004	CO2 Fin Type Gas Regulator



Standard Alternative
201.23.002	CO2 Gas Regulator
201.23.003	CO2 Heater 220V Gas Regulator
201.23.004	CO2 Fin Type Gas Regulator
299.04.003	CO2 Heater 220V Gas Regulator
250.02.009	Mig Torch - Pro Mig 500 at 3 m
250.02.010	Mig Torch - Pro Mig 500 at 4 m
250.02.009	Mig Torch - Pro Mig 500 at 3 m
250.02.010	Mig Torch - Pro Mig 500 at 4 m

Optional Accessories
203.12.004	Initial KIT for Mig Torch - Ergoplus 500
201.03.001	Feed Roll KM & KMD Ø 35 mm - Steel Ø 0.6 & 0.9 mm
201.03.002	Feed Roll KM & KMD Ø 35 mm - Steel Ø 0.8 & 1.0 mm
201.06.007	Interpass Cable size 50 mm2 at 10 m Water Cooled - KMD 285
201.06.008	Interpass Cable size 50 mm2 at 15 m Water Cooled - KMD 285

General Accessories
201.22.009	Welding Helmet - Solarmatic Blue
201.22.010	Welding Helmet - Solarmatic Red
201.22.011	Welding Helmet - Solarmatic Green
208.18.002	Torch Holder - MIG

Mig Mag Water Cooled Package for Alu

Item Code	Item Name
101.05.001.4	KMD 285 - Mig Mag Water Cooled Package for Alu
	+ Wire feeder D 285 - 1 unit
	+ feedroll for steel Ø 0.8/1.0 mm
	+ interpass cable size 35 mm at 3 m air cooled - KMD 285 w/o Gas hose - 1 set
	+ gas nipple size ¼ "

Standard Accessories
101.05.001	Mig Mag Step Switch - KMD 285
201.11.004	Plug to Ground Clamp 300 A, 35 mm2 at 3 m KM 285 & KMD 285
201.23.001	Argon Gas Regulator
208.12.002	Interpass Gas Hose - Blue at 3 m
101.12.001.1	D 250 - Water Cooler Machine Package
208.11.003	Water Cooled Hose Package - Blue & Red at 3 m
208.12.001	Regulator Gas Hose - Blue at 1.5 m

Standard Alternative
250.02.009	Mig Torch - Pro Mig 500 at 3 m
250.02.010	Mig Torch - Pro Mig 500 at 4 m
201.03.001	Feed Roll KM & KMD Ø 35 mm Steel Ø 0.6 & 0.9 mm
201.03.002	Feed Roll KM & KMD Ø 35 mm Steel Ø 0.8 & 1.0 mm
201.03.003	Feed Roll KM & KMD Ø 35 mm Steel Ø 1.2 & 1.6 mm
201.03.004	Feed Roll KM & KMD Ø 35 mm Aluminum Ø 0.6 &0.9 mm
201.03.005	Feed Roll KM & KMD Ø 35 mm Aluminum Ø 0.8 &1.0 mm
203.12.007	Red Teflon Liner 5m + Copper Liner Aluminum Ø 1.0 - 1.2 mm
203.12.008	Yellow Teflon Liner 5m + Copper Liner Aluminum Ø 1.2 - 1.6 mm

Optional Accessories
203.12.004	Initial KIT for Mig Torch - Ergoplus 500

General Accessories
201.22.009	Welding Helmet - Solarmatic Blue
201.22.010	Welding Helmet - Solarmatic Red
201.22.011	Welding Helmet - Solarmatic Green
208.18.002	Torch Holder - MIG
